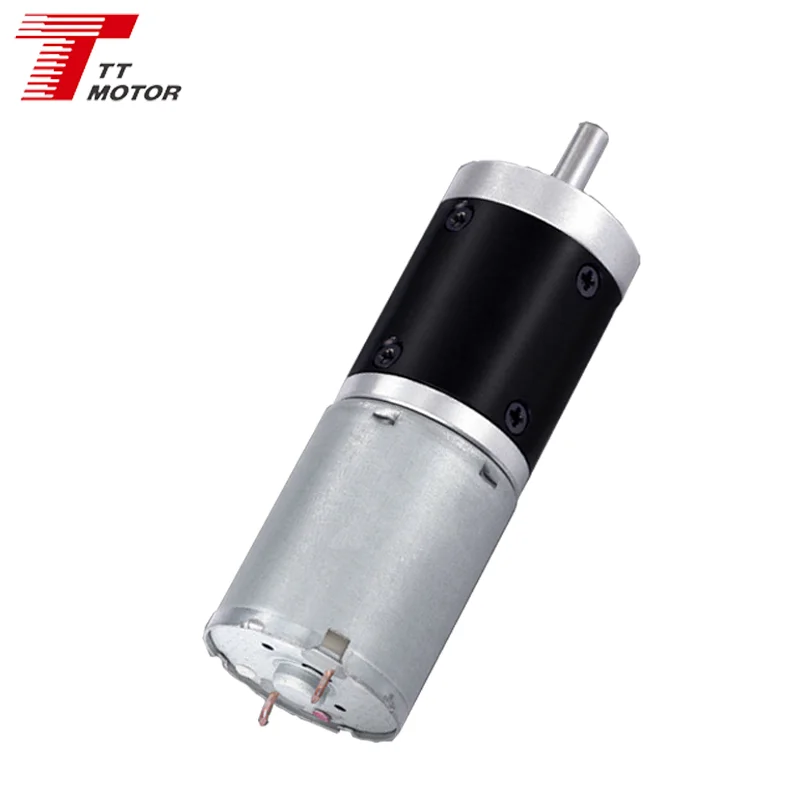

24mm planetary gear motor with 370 dc motor high torque

FOB Reference Price:Get Latest Price
US $12-20 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TT MOTOR
Model Number:
GMP24-370CA
voltage:
2.0-15.0 V
diameter:
24mm
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
100 pieces per box,or as you wish
Port
HK
Lead Time :
20-25 days

24mm dc gear planetary motor with encoder

12v 20rpm dc gear motor

dc 12v gear motor 1a


gear motor:GMP24-370CA

1.Automatic curtain machines
2.Medical equipment .Rotary machine advertising lights

3.Dc Gear motors can match encoder,3,12ppr

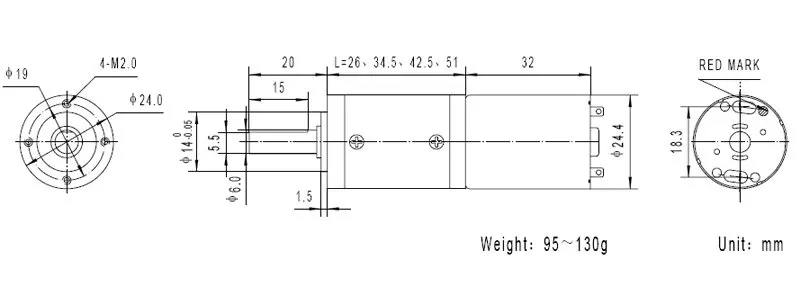

4.size:24.0*60.0 mm,60 mm length mini planetary gear motor

5.Reduction Ratio:1/3.7,1/5.2,1/19,  1/27,  1/51,1/71,1/100,1/139,

                              1/189, 1/264,1/369,1/516,1/720,1/2671,1/3730

6.We can send samples first,and the delivery time is 15-20 days



Gear motor Technical Data

Gearbox with motor:GMP24-370CA-22170-XXX

Reduction ratio

4

19

27

51

100

189

264

369

981

1370

Length mm

26

28

28

32.5

32.5

37.5

37.5

37.5

42

42

No-load speed   rpm

1300

280

195

104

54

29

21

15

5.7

4.1

Rated speed     rpm

1200

253

178

94

48

25

18

13

5.1

3.8

Rated torque   kg.cm

0.077

0.32

0.45

0.73

1.44

2.49

3.48

4.43

5

5

Max.momentary

tolerance torque kg.cm

0.6

2.47

3.52

5.7

11.2

15

15

15

15

15

Gearbox with motor:GMP24-370CA-15360-XXX

Reduction ratio

4

19

27

51

100

189

264

369

981

1370

Length mm

26

28

28

32.5

32.5

37.5

37.5

37.5

42

42

No-load speed   rpm

1300

280

195

104

54

29

21

15

5.7

4.1

Rated speed     rpm

1200

253

178

94

48

25

18

13

5.1

3.8

Rated torque     kg.cm

0.077

0.32

0.45

0.73

1.44

2.49

3.48

4.43

5

5

Max.momentary

tolerance torque kg.cm

0.6

2.47

3.52

5.7

11.2

15

15

15

15

15

Gearbox with motor:GMP24-370CA-12560-XXX

Reduction ratio

4

19

27

51

100

189

264

369

981

1370

Length mm

26

28

28

32.5

32.5

37.5

37.5

37.5

42

42

No-load speed   rpm

870

180

130

69

35

19

13.6

10

3.8

2.7

Rated speed     rpm

750

158

110

59

30

16

11.4

8

3.5

2.6

Rated torque     kg.cm

0.065

0.27

0.38

0.61

1.2

2.1

2.9

4

5

5

Max.momentary

tolerance torque kg.cm

0.4

1.67

2.36

3.83

7.5

13

15

15

15

15



GMP24-370
