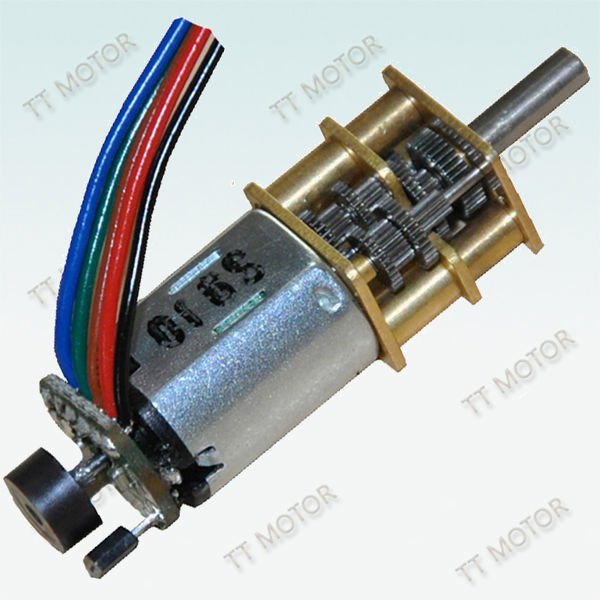

GM12-N20VA-EN 12mm micro gear motor with encoder electric toothbrush motor

FOB Reference Price:Get Latest Price
US $3.5-5.2 / Piece | 100 Piece/Pieces (Min. Order)
Supply Ability:
100000 Piece/Pieces per Month
Port:
HK
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TT Motor
Model Number:
GM12-N20VA-EN
Usage:
Car, Electric Bicycle
Certification:
CE, ROHS, IOS9001
Type:
Gear Motor
Torque:
2.5-3.0g/cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Other
Speed(RPM):
13g/cm
Continuous Current(A):
0.25-1.2A
Output Power:
0.31-0.35W
Voltage(V):
12V/24V
Efficiency:
65%
voltage:
1.5-12.0 V
At Load speed:
8-200 RPM
At Load Torque:
0.1-1.2 Kg.cm
At Load output:
0.25-0.34 W
Stall Torque:
0.3-5.4 kg.cm
reduction ratio:
10-1000
Material:
Steel
Standard or Nonstandard:
Standard
Shape:
Other
Packaging & Delivery
Packaging Details
600-800pcs per box,or as you wish
Delivery Time
25-30 days
MODEL:GM12-N20VA-EN

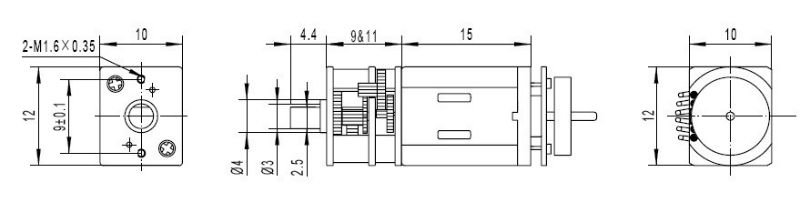

1.size:12.0*24.0mm,3mm shaft diameter
2. Reduction Ratio:
1/3,1/5,1/10,1/30,1/50,1/63,1/100,1/150,1/210,1/250,1/298,1/370,1/380,1/1000
3.weight:35g/pcs
4.samples can be offered for your test first.
