1050 r/min no-load speed 12v dc gear motor or generator low rpm

FOB Reference Price:Get Latest Price
US $3.15-3.65 / Pieces | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TT MOTOR
Model Number:
GM24-N20VA
Usage:
Boat, Car, Electric Bicycle, Home Appliance, Industrial equipment
Certification:
CE, ROHS, ISO9001
Type:
Gear Motor
Torque:
13 g.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Other
Speed(RPM):
25-83r/min
Continuous Current(A):
0.25-0.5A
Output Power:
3.1-3.5 W
Voltage(V):
2.4,5,12 V DC
Efficiency:
65%
Size:
10*24mm
Product Name:
GM24-N20VA DC gear motor
No-load speed:
30-1050 r/min
No-load current:
15-60mA
Rated torque:
0.21-0.5 g.cm
Output power:
0.31-0.35W
Stall torque:
13g.cm
Stall current:
0.25-0.5A
Rated voltage:
2.4-12V DC
Application:
Automatic Product
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month dc generator low rpm
Packaging & Delivery
Packaging Details
dc generator low rpm :100 pieces per box
Port
SHENZHENG
Product Description

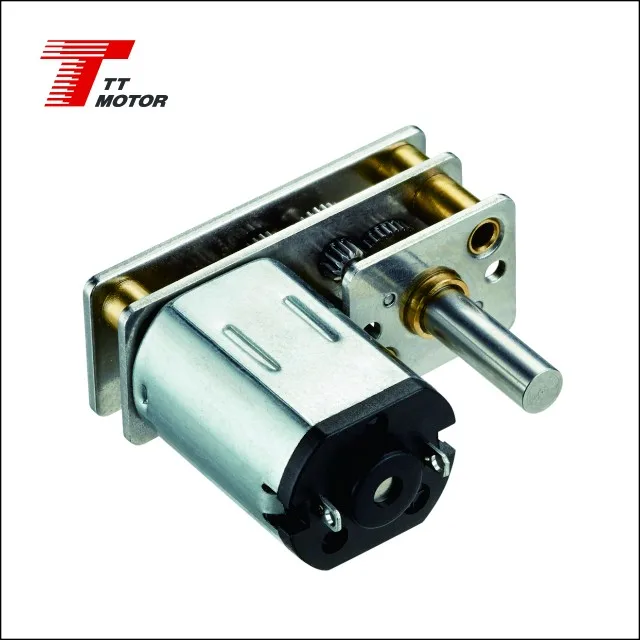

1050 r/min no-load speed 12v dc gear motor or generator low rpm


Main Features
24*12mm gearbox plus N20&N30 permanent magnet DC motor
Small size dc gear motor with low speed and big torque
24mm gear motor provide 0.05Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
DC Gear motor can match encoder,3ppr
Reduction ratio:150,350,500
Model:Motor GM24-N20VA

TFF-N20VA-13110
Rated voltage:2.4V DC
Rated speed:12000r/min
Output power:0.31W
No-load speed:14800r/min
Rated torque:2.5g.cm
Stall torque:13g/cm
No-load current:60mA
Rated current:200mA
Stall current:1.2A

TFF-N20VA-09220
Rated voltage:5V DC
Rated speed:12000r/min
Output power:0.31W
No-load speed:14800r/min
Rated torque:2.5g.cm
Stall torque:13g/cm
No-load current:30mA
Rated current:120mA
Stall current:0.52A

          TFF-N20VA-05430
Rated voltage:12V DC
Rated speed:12500r/min
Output power:0.35W
No-load speed:16000r/min
Rated torque:3.0g.cm
Stall torque:13g/cm
No-load current:15mA
Rated current:60mA
Stall current:0.25A
GM24-N20VA-13110-xxx
Reduction ratio
150
350
500
Length mm
9.0
9.0
9.0
No-load speed rpm
96
42
30
Rated speed rpm
80
34
25
Rated torque kg.cm
0.21
0.44
0.5
Max.momentary tolerance torque kg.cm
1.1
2.3
3.0
GM24-N20VA-09220-xxx
Reduction ratio
150
350
500
Length mm
9.0
9.0
9.0
No-load speed rpm
96
42
30
Rated speed rpm
80
34
25
Rated torque kg.cm
0.21
0.44
0.5
Max.momentary tolerance torque kg.cm
1.1
2.3
3.0
GM24-N20VA-05430-xxx
Reduction ratio
150
350
500
Length mm
9.0
9.0
9.0
No-load speed rpm
105
45
32
Rated speed rpm
83
35
27
Rated torque kg.cm
0.25
0.5
0.5
Max.momentary tolerance torque kg.cm
1.1
2.3
3.0

Product Application

Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.
