Micro dc mini electric reduction gear box motor

FOB Reference Price:Get Latest Price
US $9.6-13.6 / Pieces | 60 Piece/Pieces Diagnostic equipment micro dc 24v geared 12 kg.cm 12v dc motor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TT MOTOR
Model Number:
DC 24V brushless motor GM51-775PM
Usage:
Boat, Electric Bicycle, Medical equipment
Certification:
ROHS, ISO 9001
Type:
Gear Motor
Torque:
10.0Nm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Other
Speed(RPM):
3.5-900 r/min
Continuous Current(A):
2.3-8.7mA
Output Power:
31-40W
Voltage(V):
6-24VDC
Efficiency:
65%
size:
51*112.6mm
Output Shaft:
Steel Hardened
Gear Type:
spur Teeth
Housing:
Zinc Alloy
Bearing At Output:
Sleeve Bearing
Axial Play:
0.05-0.5mm
Directions:
CW/CCW
Backlash:
<3°
Reduction ratio:
3-1000
Product name:
dc gear motor GM51-775PM
SupplyAbility
SupplyAbility:
Piece/Pieces per Month Diagnostic equipment micro dc 24v geared 12 kg.cm 12v dc motor
Packaging & Delivery
Packaging Details
DC 24V brushless motor pack:60 pieces per box,or as you wish.
Diagnostic equipment micro dc 24v geared 12 kg.cm 12v dc motor
Port
HK
Lead Time :
15-20 days
Product Description

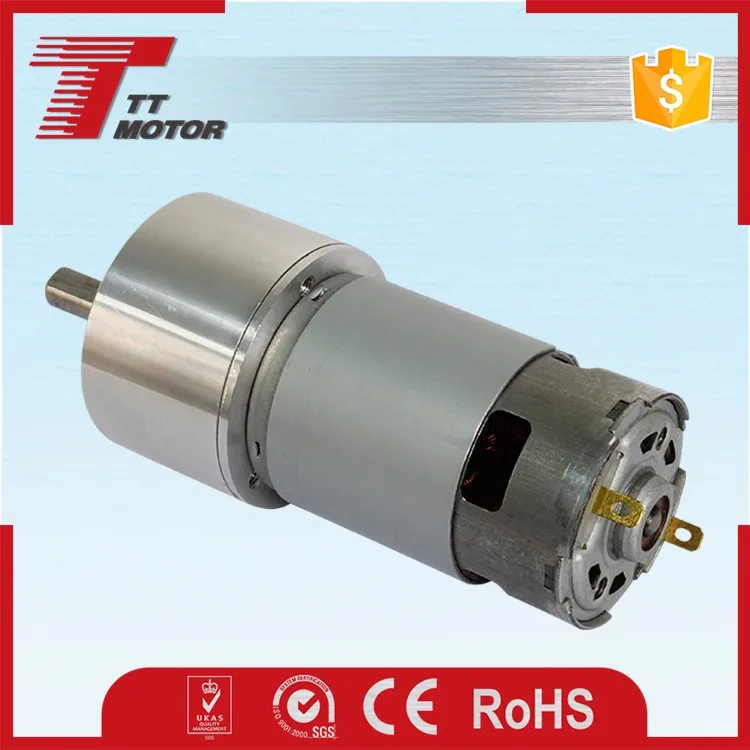

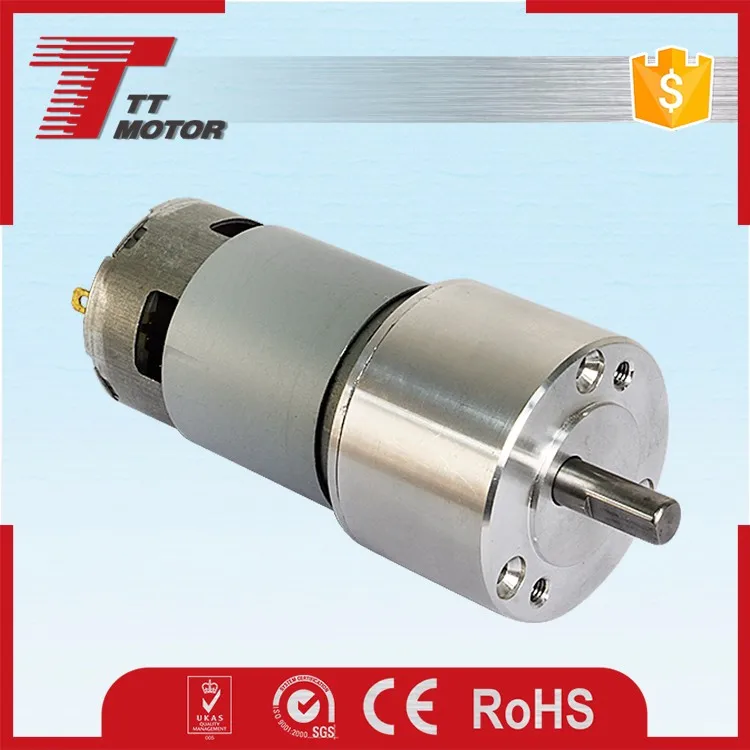

Micro dc mini electric reduction gear box motor

Product Description

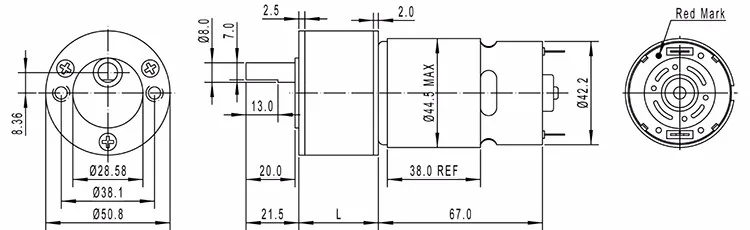

51mm gear box plus 775PM 7 series dc motor
Small size dc gear motor with low speed and big torque
51mm gear motor provide 5.0Nm torque max and more reliable
Suitable to small diameter, low noise and big torque application
DC Gear motor can match encoder,11ppr
Reduction ratio:5.2、10、20、38、83、153、333、613、1333、2453

Motor model no.
Rated voltage
No-load speed
No-load current
Rated speed
Rated torque
Rated current
Output power
Stall torque
Stall current
VDC
r/min
mA
r/min
g.cm
mA
W
g.cm
A
TRS-775PM-2460
24
6000
0.3
4500
900
2.3
40
3600
7.2
TRS-775PM-0648
6
4800
1.2
3650
860
8.6
32
3600
32
TRS-775PM-1246
12
4600
0.6
3500
860
4.3
31
3600
16
GM51-775PM-2460-xxx
Reduction ratio
5
10
20
38
83
153
333
613
1333
Length mm
24.1
24.1
28.3
28.3
32.5
32.5
36.8
36.8
41.1
No-load speed rpm
1100
550
280
150
70
38
18
10
4.5
Rated speed rpm
900
450
225
120
54
32
16
9
4.4
Rated torque kg.cm
3.6
7.2
12.6
24
45
50
50
50
50
Max.momentary tolerance torque kg.cm
14
28
50
80
80
80
80
80
80
GM51-775PM-0648-xxx
Reduction ratio
5
10
20
38
83
153
333
613
1333
Length mm
24.1
24.1
28.3
28.3
32.5
32.5
36.8
36.8
41.1
No-load speed rpm
890
450
230
120
55
30
14
8
3.5
Rated speed rpm
730
365
180
96
44
24
12
7
3.5
Rated torque kg.cm
3.4
6.9
12
23
43
50
50
50
50
Max.momentary tolerance torque kg.cm
14
2850
50
80
80
80
80
80
80
GM51-775PM-1246-xxx
Reduction ratio
5
10
20
38
83
153
333
613
1333
Length mm
24.1
24.1
28.3
28.3
32.5
32.5
36.8
36.8
41.1
No-load speed rpm
850
430
210
110
52
29
14
7.5
3.5
Rated speed rpm
700
350
175
90
42
23
12
7
3.5
Rated torque kg.cm
3.4
6.9
12
43
50
50
50
50
50
Max.momentary tolerance torque kg.cm
14
28
50
80
80
80
80
80
80

Product Application

Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.
