60mm dc planetary 1/240 rpm gear motor for heavy equipments

FOB Reference Price:Get Latest Price
US $6-43 / Pieces | 100 Piece/Pieces (Min. Order)
Voltage(V):
24V DC
Output Power:
30-138W
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TT MOTOR
Model Number:
GMP60-6097/60127
Usage:
Boat, Car, Home Appliance, Industrial equipment
Certification:
CE, ROHS, ISO9001
Type:
Gear Motor
Torque:
30.0Nm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Other
Speed(RPM):
8-1665 rpm
Continuous Current(A):
8-12A
Efficiency:
65%
Product Name:
GMP60-6097/60127 700 rpm motor

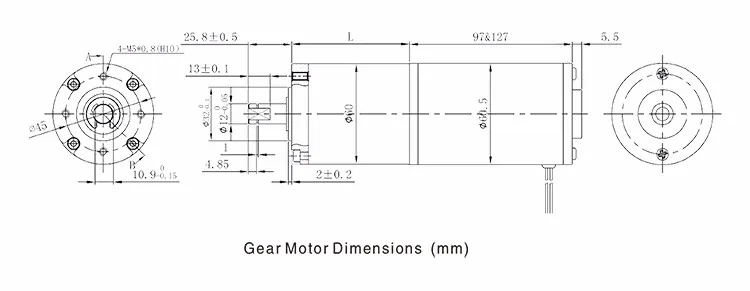

Size:
60*164.3mm
Gear Type:
spur teeth
Output Shaft:
Stainless steel hardened
Main Gear:
Alloy steel
Ring Gear:
Steel
Adapter plate:
Aluminium alloy
Bearing at output:
Ball bearing
Average Backlash no load:
<3°
Axial Play:
0.05-0.3mm
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month Semiconductor automatic machines planetary gear dc electrical sa
Packaging & Delivery
Packaging Details
700 rpm motor BOX:100 pieces per box
Semiconductor automatic machines planetary gear dc electrical saw motor
Port
SHENZHENG
Product Description

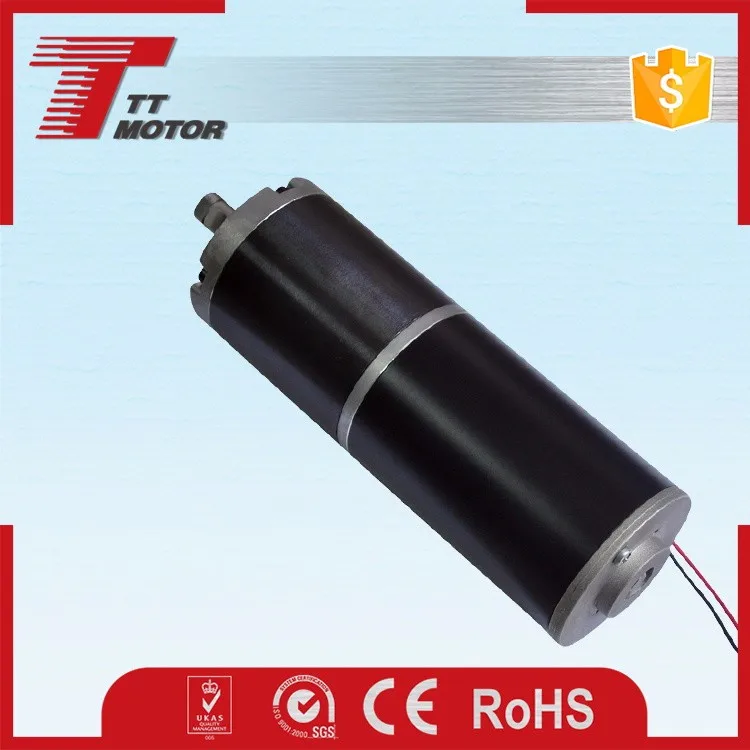

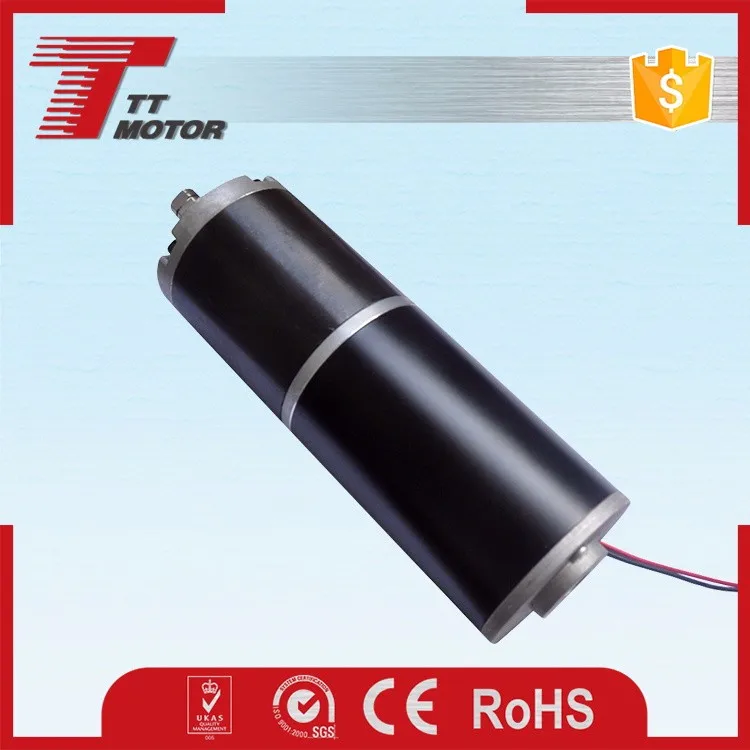

60mm dc planetary 1/240 rpm gear motor for heavy equipments

Main Features

56mm planetary gearbox plus 60mm dc motor and 57mm brushless motor
Small size dc gear motor with low speed and big torque
60mm gear motor provide 30.0Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
Reduction ratio:4、13、15、18、47、55、65、77、168、198、234、276、326

Model:Motor GMP60-6097


TRK-6097-2425
Rated voltage:24V DC
Rated speed:2000r/min
Output power:30W
No-load speed:2500r/min
Rated torque:1500g.cm
Stall torque:7500g/cm
No-load current:250mA
Rated current:1800mA
Stall current:8.0A


TRK-6097-2460
Rated voltage:24V DC
Rated speed:4500r/min
Output power:138W
No-load speed:6000r/min
Rated torque:3000g.cm
Stall torque:12000g/cm
No-load current:750mA
Rated current:8200mA
Stall current:12.0A
GMP60-6097-2425-XXX
Reduction ratio
4
13
18
47
55
77
168
198
326
Length mm
36
48
48
59
59
59
70.2
70.2
70.2
No-load speed rpm
690
190
138
53
45
32
15
12
8
Rated speed rpm
555
153
110
42
36
26
12
10
6
Rated torque kg.cm
6.0
13
18
40
55
65
120
145
190
Max.momentary tolerance torque kg.cm
30
80
80
180
180
180
300
300
300
GMP60-6097-2460-XXX
Reduction ratio
4
13
18
47
55
77
168
198
326
Length mm
36
48
48
59
59
59
70.2
70.2
70.2
No-load speed rpm
1665
460
333
127
108
78
36
30
18
Rated speed rpm
1250
345
250
9
80
58
26
22
14
Rated torque kg.cm
8
25
35
70
80
110
170
210
260
Max.momentary tolerance torque kg.cm
30
80
80
200
200
200
300
300
300

Product Application

Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.

Related Products
Packing & Delivery

Packaging: single carton packing, 500 pieces per box.

Shipping time:
DHL: 3-5 working days ;

UPS: 5-7 working days;

TNT: 5-7 working days;

FedEx: 7-9 working days;

EMS: 12-15 working days;

China Post: Depends on ship to which country;

Sea: Depends on ship to which country

Our Company

TT Motor (HK) Industrial Co., Ltd. has been specializing in micro motors, gear motors and their respective parts since 2000.
Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.
By leveraging our hard-won reputation for honesty, dependability and quality, TT aims to continue as a pioneer in the sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.

Certifications

FAQ

Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation

Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.

Q: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.

Q: How long is the deliver[Producing] and shipping?

A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.

Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
