Micro electric mini gate motor used for headphone stereo

FOB Reference Price:Get Latest Price
US $3.9-5.9 / Pieces | 100 Piece/Pieces Micro electric mini gate motor used for headphone stereo (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TT MOTOR
Model Number:
DC Gear Motor GM13-050SH
Usage:
Boat, Car, Electric Bicycle, Home Appliance, Industrial equipment
Certification:
CE, ROHS, ISO9001
Type:
Gear Motor
Torque:
33-50g.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Other
Speed(RPM):
5700-10000 rpm
Continuous Current(A):
0.29-1.30A
Output Power:
0.6-1.03 W
Voltage(V):
12, 6V DC
Efficiency:
65%, 79%-89%
Size:
15.5*37.7 mm
Product Name:
DC Gear Motors GM13-050SH
Gear type:
spur teeth
Output Shaft:
Stainless Steel Hardened
Basilar Plate:
Copper
Bearing At Output:
Sleeve Bearing
Axial Play:
0.05-0.5mm
Reduction ratio:
3 -1000
Rotating direction:
CW/CCW
SupplyAbility
SupplyAbility:
100000 Piece/Pieces per Month Micro electric mini gate motor used for headphone stereo
Packaging & Delivery
Packaging Details
DC Gear Motors:100 pieces per box
Micro electric mini gate motor used for headphone stereo
Port
SHENZHENG
Lead Time :
30 days
Product Description

Micro electric mini gate motor used for headphone stereo


Main Features

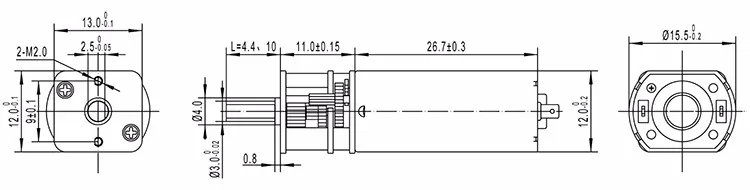

13*12 mm gearbox plus 030&050 permanent magnet DC motor
Small size dc gear motor with low speed and big torque
13mm gear motor provide 0.05Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
DC Gear motors can match encoder, 3ppr
Reduction ratio:3、10、17、20、35、63、86、115、250、360

Model:Motor GM13-050SH


TFF-050SH-13120
Rated voltage:6V DC
Rated speed:10000r/min
Output power:1.03W
No-load speed:12500r/min
Rated torque:10g.cm
Stall torque:50g/cm
No-load current:45mA
Rated current:255mA
Stall current:1.30A


TFF-050SH-07360
Rated voltage:12V DC
Rated speed:5700r/min
Output power:0.6W
No-load speed:8000r/min
Rated torque:10g.cm
Stall torque:33g/cm
No-load current:30mA
Rated current:110mA
Stall current:0.29A


TFF-050SH-08240
Rated voltage:12V DC
Rated speed:9500r/min
Output power:0.99W
No-load speed:128000r/min
Rated torque:10g.cm
Stall torque:43g/cm
No-load current:35mA
Rated current:150mA
Stall current:0.55A
GM13-050SH-13120-xxx
Reduction ratio
3
10
20
35
63
86
115
150
250
Length mm
11
11
11
11
11
11
11
11
11
No-load speed rpm
4000
1200
600
340
190
140
105
80
50
Rated speed rpm
3300
1000
500
285
158
116
92
73
46
Rated torque kg.cm
0.024
0.08
0.14
0.25
0.44
0.5
0.5
0.5
0.5
Max.momentary tolerance torque kg.cm
0.12
0.4
0.7
1.1
1.9
2.6
3.0
3.0
3.0
GM13-050SH-07360-xxx
Reduction ratio
3
10
20
35
63
86
115
150
250
Length mm
11
11
11
11
11
11
11
11
11
No-load speed rpm
2500
750
380
220
120
90
68
52
32
Rated speed rpm
1900
570
285
160
90
65
53
43
28
Rated torque kg.cm
0.024
0.08
0.14
0.25
0.44
0.5
0.5
0.5
0.5
Max.momentary tolerance torque kg.cm
0.08
0.26
0.46
0.7
1.2
1.7
2.1
2.7
3.0
GM13-050SH-08240-xxx
Reduction ratio
3
10
20
35
63
86
115
150
250
Length mm
11
11
11
11
11
11
11
11
11
No-load speed rpm
4100
1230
620
350
200
145
110
85
50
Rated speed rpm
3150
950
475
270
150
110
82
73
46
Rated torque kg.cm
0.024
0.08
0.14
0.25
0.44
0.5
0.5
0.5
0.5
Max.momentary tolerance torque kg.cm
0.1
0.34
0.6
0.9
1.6
2.2
2.7
3.0
3.0

Product Application

Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.
