Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: TT MOTOR
  • Model Number: GM16-030PA
  • Usage: Boat, Industrial equipment
  • Certification: CE, ROHS, ISO9001
  • Type: Gear Motor
  • Torque: 0.01-0.9kg.cm
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Protect Feature: Other
  • Speed(RPM): 38-3250rpm
  • Continuous Current(A): 75-200mA
  • Output Power: 1.0w max
  • Voltage(V): 5V 6V 12V
  • Efficiency: 65%
  • Size: 15.5*29.6mm

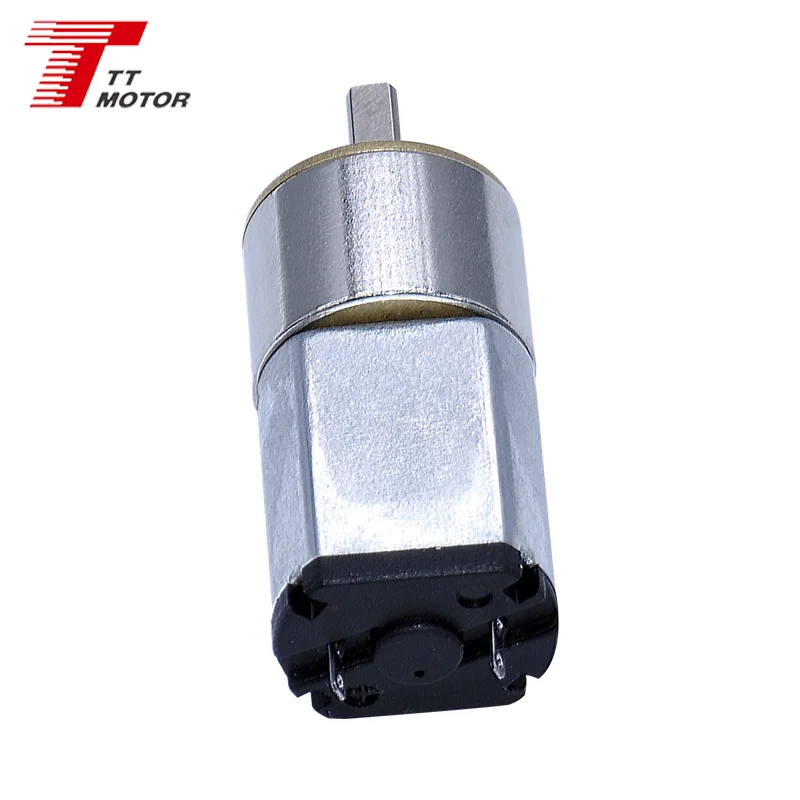

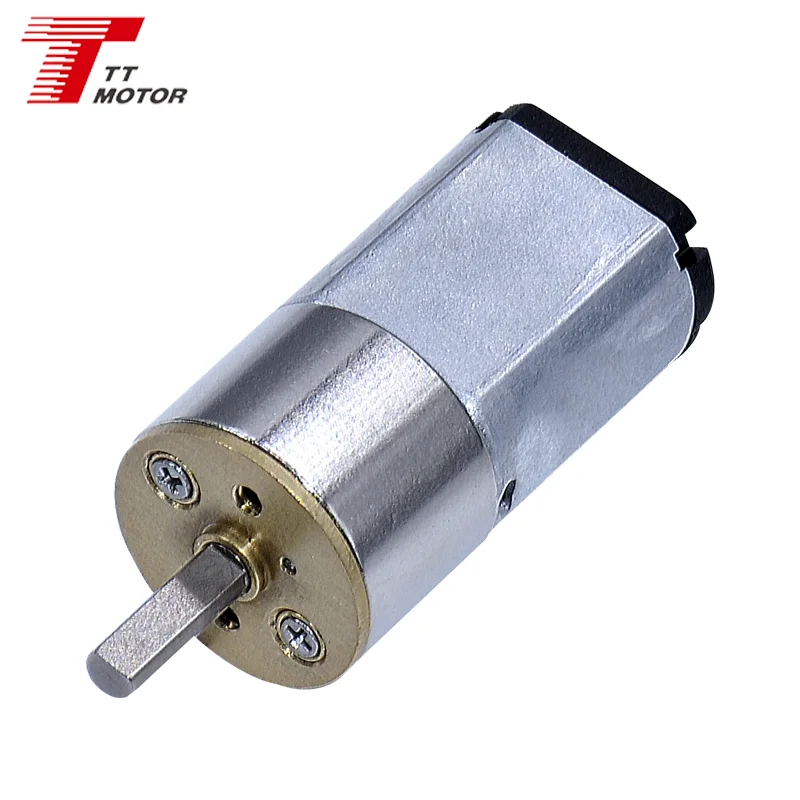

  • Product Name: dc gear motor GM16-030PA
  • Gear type: straight teeth
  • Output Shaft: Stainless Steel Hardened
  • Main Gear: Stainless Steel Hardened
  • Basilar Plate: Copper
  • Bearing At Output: Sleeve Bearing
  • Axial Play: 0.05-0.5mm
  • Average Backlash no load: <3°
  • Reduction ratio: 3-1000

Packaging & Delivery

Packaging Details DC motor:100 pieces per box
Mini electric 12V DC high powered bike motor
Delivery Time 15-30 days
Product Description

Mini electric 12V DC high powered bike motor

Product Application

Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.

Main Features

16 mm gearbox plus 030&050 permanent magnet DC motor
 Small size dc gear motor with low speed and big torque
16 mm gear motor provide 0.05 Nm torque and more reliable

 Suitable to small diameter, low noise and big torque application
Reduction ratio:3、10、17、20、35、63、86、115、150、250、360

Model:GM16-030PA


TFF-030PA-09220
Rated voltage:6VDC
Rated speed:9000r/min
Output power:0.45W
No-load speed:11500r/min
Rated torque:5g.cm
Stall torque:23g.cm
No-load current:35mA
Rated current:140mA
Stall current:0.6A

TFF-030PA-10180
Rated voltage:5VDC
Rated speed:9000r/min
Output power:0.45W
No-load speed:11500r/min
Rated torque:5g.cm
Stall torque:23g.cm
No-load current:45mA
Rated current:200mA
Stall current:0.75A


TFF-030PA-06400
Rated voltage:12VDC
Rated speed:9750r/min
Output power:0.50W
No-load speed:12500r/min
Rated torque:5g.cm
Stall torque:23g.cm
No-load current:20mA
Rated current:75mA
Stall current:0.27A
GM16-030PA-09220-xxx
Reduction ratio
3
10
20
35
63
86
115
150
250
Length mm
11
11
11
11
11
11
11
11
11
No-load speed rpm
3600
1100
550
310
175
130
96
73
44
Rated speed rpm
3000
900
450
260
140
105
78
60
38
Rated torque kg.cm
0.01
0.03
0.06
0.1
0.19
0.26
0.35
0.45
0.5
Max.momentary tolerance torque kg.cm
0.05
0.14
0.28
0.48
0.9
1.2
1.6
1.9
2.9
GM16-030PA-06400-xxx
Reduction ratio
3
10
20
35
63
86
115
150
250
Length mm
11
11
11
11
11
11
11
11
11
No-load speed rpm
4000
1200
610
350
195
140
105
83
50
Rated speed rpm
3250
975
485
280
155
110
85
65
41
Rated torque kg.cm
0.01
0.03
0.06
0.1
0.19
0.26
0.35
0.45
0.5
Max.momentary tolerance torque kg.cm
0.05
0.14
0.28
0.48
0.9
1.2
1.6
1.9
2.9
GM16-030PA-10180-xxx
Reduction ratio
3
10
20
35
63
86
115
150
250
Length mm
11
11
11
11
11
11
11
11
11
No-load speed rpm
3600
1100
550
310
175
130
96
73
44
Rated speed rpm
3000
900
450
260
140
105
78
60
38
Rated torque kg.cm
0.01
0.03
0.06
0.1
0.19
0.26
0.35
0.45
0.5
Max.momentary tolerance torque kg.cm
0.05
0.14
0.28
0.48
0.9
1.2
1.6
1.9
2.9
