Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: TT MOTOR
  • Model Number: TRS-775PM-2460
  • Usage: Boat, Electric Bicycle, Medical equipment
  • Certification: ROHS, ISO 9001
  • Type: Gear Motor
  • Torque: 10.0Nm
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Protect Feature: Other
  • Speed(RPM): 3470-4500 r/min
  • Continuous Current(A): 2.3-8.7mA
  • Output Power: 32-40W
  • Voltage(V): 6-24VDC
  • Efficiency: 65%
  • size: 42*136mm
  • Rated voltage: 6V DC-24V DC
  • No-load speed: 4600-6000 r/min
  • No-load current: 0.3-1.2mA
  • Rated speed: 3470-4500 r/min
  • Rated torque: 900g.cm
  • Rated current: 2.3-8.7mA
  • Output power: 32-40W
  • Stall torque: 3600g.cm
  • Product name: 24v dc gear motor TRS-775PM-2460

Packaging & Delivery

Packaging Details: 60 pieces per box,or as you wish.
Delivery Detail: 15-20 days
Product Description

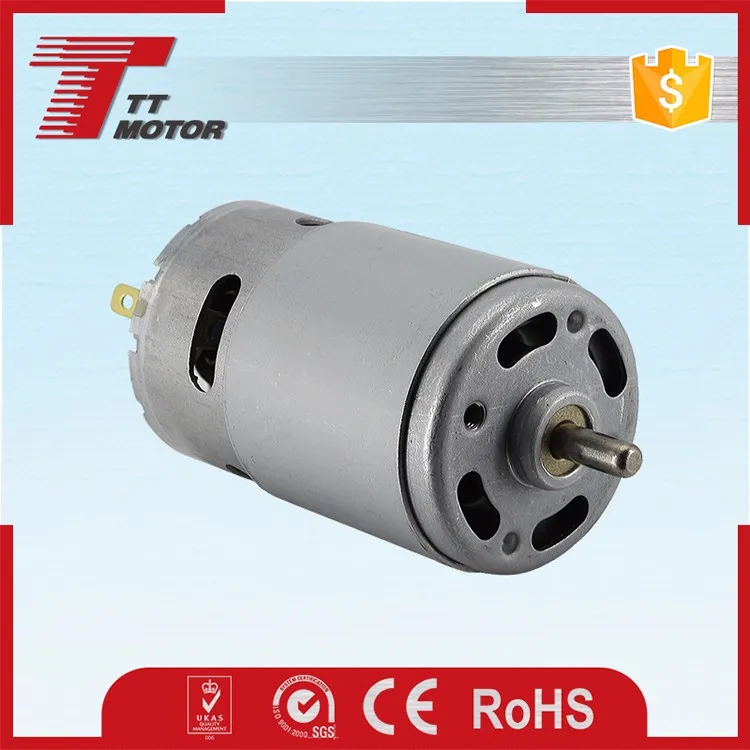

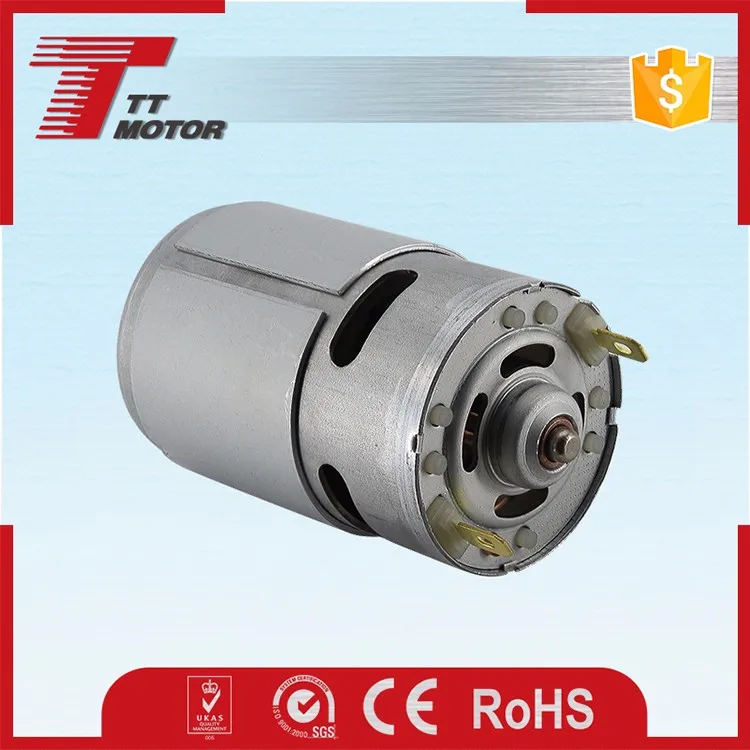

6V 12V 24V DC planetary gear motor rs-775

Product Description

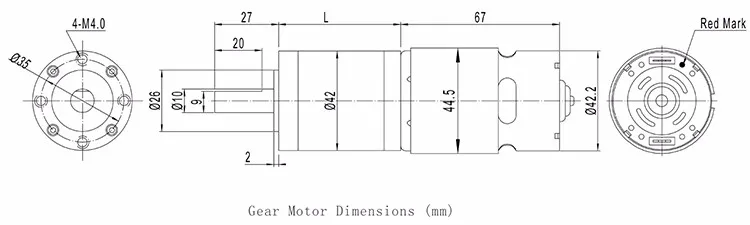

42mm Planetary reducer plus 775PM 7 series dc motor
Small size dc gear motor with low speed and big torque
42mm gear motor provide 10.0Nm torque max and more reliable
Suitable to small diameter, low noise and big torque application
DC Gear motor can match encoder,11ppr
Reduction ratio:4、14、19、51、71、100、139、189、264、369、516、720

Motor model no.
Rated voltage
No-load speed
No-load current
Rated speed
Rated torque
Rated current
Output power
Stall torque
Stall current
VDC
r/min
mA
r/min
g.cm
mA
W
g.cm
A
TRS-775PM-2460
24
6000
0.3
4500
900
2.3
40
3600
7.2
TRS-775PM-0648
6
4800
1.2
3600
900
8.7
33
3600
32
TRS-775PM-1246
12
4600
0.6
3470
900
4.4
32
3600
16
TRS-775PM-2460-xxx
Reduction ratio
4
19
51
100
139
189
264
369
516
Length mm
31.5
42
52
52
52
62
62
62
62
No-load speed rpm
1400
295
110
58
42
32
23
16
11.5
Rated speed rpm
1125
235
88
45
32
24
18
14
10.5
Rated torque kg.cm
2.8
13
26
51
71
89
100
100
100
Max.momentary tolerance torque kg.cm
11
54
110
216
300
300
300
300
300
TRS-775PM-0648-xxx
Reduction ratio
4
19
51
100
139
189
264
369
516
Length mm
31.5
42
52
52
52
62
62
62
62
No-load speed rpm
1150
240
92
46
35
25
18
13
9.3
Rated speed rpm
900
190
71
36
26
19
14
11
8.5
Rated torque kg.cm
2.8
13
26
51
71
89
100
100
100
Max.momentary tolerance torque kg.cm
11
54
110
216
300
300
300
300
300
TRS-775PM-1246-xxx
Reduction ratio
4
19
51
100
139
189
264
369
516
Length mm
31.5
42
52
52
52
62
62
62
62
No-load speed rpm
1100
220
86
44
32
24
17
12
8.7
Rated speed rpm
870
185
69
35
25
19
14
10.5
8.2
Rated torque kg.cm
2.8
13
26
51
71
89
100
100
100
Max.momentary tolerance torque kg.cm
11
54
110
216
300
300
300
300
300

Product Application

Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.
