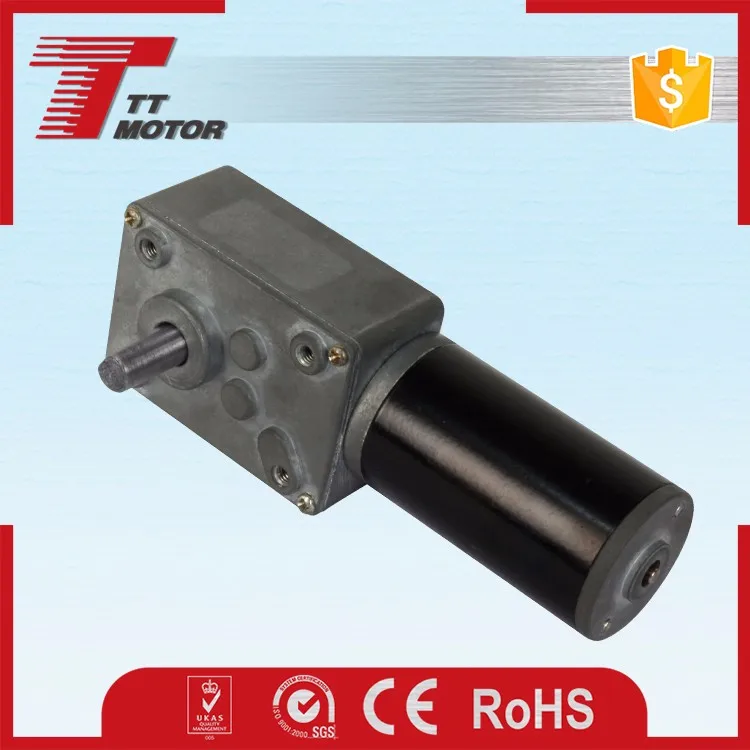

TWG4058-555PM worm geared motor 12v 24v micro reducer motor

FOB Reference Price:Get Latest Price
$5.80 - $11.80 / Pieces | 100 Piece/Pieces (Min. Order)
Voltage(V):
12v 24v
Output Power:
5.7-16W
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TT MOTOR
Model Number:
TWG4058-555PM
Usage:
Boat, Home Appliance, Medical Instrument
Certification:
CE, ROHS, ISO9001
Type:
Gear Motor
Torque:
1-20.0Kg.cm
Construction:
Permanent Magnet
Commutation:
Brushless
Protect Feature:
Other
Speed(RPM):
5-65 rpm
Continuous Current(A):
0.7-2.4 A
Efficiency:
65%
Size:
40*108 mm
Product Name:
DC worm gear motor TWG4058-555PM
No-load speed:
10-70rpm
No-load current:
150-300mA
Rated torque:
max.15kg.cm
Output power:
5.7-16 W
Stall torque:
1-2.2kg.cm
Stall current:
2.7A-15A
Rated voltage:
12VDC-24VDC
Application:
Automatic Product
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month worm gear motor
Packaging & Delivery
Packaging Details
worm gear motor: 100 pieces per box
Port
HK
Product Description

TWG4058-555PM worm geared motor 12v 24v micro reducer motor


Main Features

40*58mm motor gearbox plus 555PM permanent magnet DC motor & 36mm brushless motor
Small size dc gear motor with low speed and big torque
40*58mm gear motor provide 1.0Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
DC Gear motor can match encoder,11ppr
Reduction ratio:81、135、207、405、621

Model:Motor TWG4058-555PM


TRS-555PM-1233
Rated voltage: 12VDC
Rated speed:2800r/min
Output power:5.7W
No-load speed:3300r/min
Rated torque:200g.cm
Stall torque:1150g.cm
No-load current:200mA
Rated current:1000mA
Stall current:5.5A


TRS-555PM-1260
Rated voltage: 12VDC
Rated speed:5250r/min
Output power:16W
No-load speed:6000r/min
Rated torque:290g.cm
Stall torque:2200g.cm
No-load current:300mA
Rated current:2400mA
Stall current:15A


TRS-555PM-2440
Rated voltage: 24VDC
Rated speed:3150r/min
Output power:6.4W
No-load speed:4000r/min
Rated torque:200g.cm
Stall torque:1000g.cm
No-load current:150mA
Rated current:700mA
Stall current:2.7A
TWG4058-555PM-1233-x
Reduction ratio
81
135
207
405
621
Length mm
58
58
58
58
58
No-load speed rpm
38
24
16
8
5
Rated speed rpm
34
21
14
7
5
Rated torque kg.cm
10
10
10
10
10
Max.momentary tolerance torque kg.cm
15
15
15
15
15
TWG4058-555PM-1260-x
Reduction ratio
81
135
207
405
621
Length mm
58
58
58
58
58
No-load speed rpm
70
43
29
15
10
Rated speed rpm
65
39
26
14
9
Rated torque kg.cm
10
10
10
10
10
Max.momentary tolerance torque kg.cm
15
15
15
15
15
TWG4058-555PM-2440-x
Reduction ratio
81
135
207
405
621
Length mm
58
58
58
58
58
No-load speed rpm
47
28
19
10
6
Rated speed rpm
39
24
16
8
5
Rated torque kg.cm
10
10
10
10
10
Max.momentary tolerance torque kg.cm
15
15
15
15
15

Product Application

Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.

Related Products
Packing & Delivery

Packaging: single carton packing, 100 - 500 pieces per box.

Shipping time:
DHL: 3-5 working days ;

UPS: 5-7 working days;

TNT: 5-7 working days;

FedEx: 7-9 working days;

EMS: 12-15 working days;

China Post: Depends on ship to which country;

Sea: Depends on ship to which country

Our Company

TT Motor (HK) Industrial Co., Ltd. has been specializing in micro motors, gear motors and their respective parts since 2000.
Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.
By leveraging our hard-won reputation for honesty, dependability and quality, TT aims to continue as a pioneer in the sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.

Certifications

FAQ

Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation

Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.

Q: Which shipping way is avaliable?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.

Q: How long is the deliver and shipping?

A: Devliver time depends on the quantity you order. usually it takes 15-25 working days.

Q: My package has missing products. What can I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
