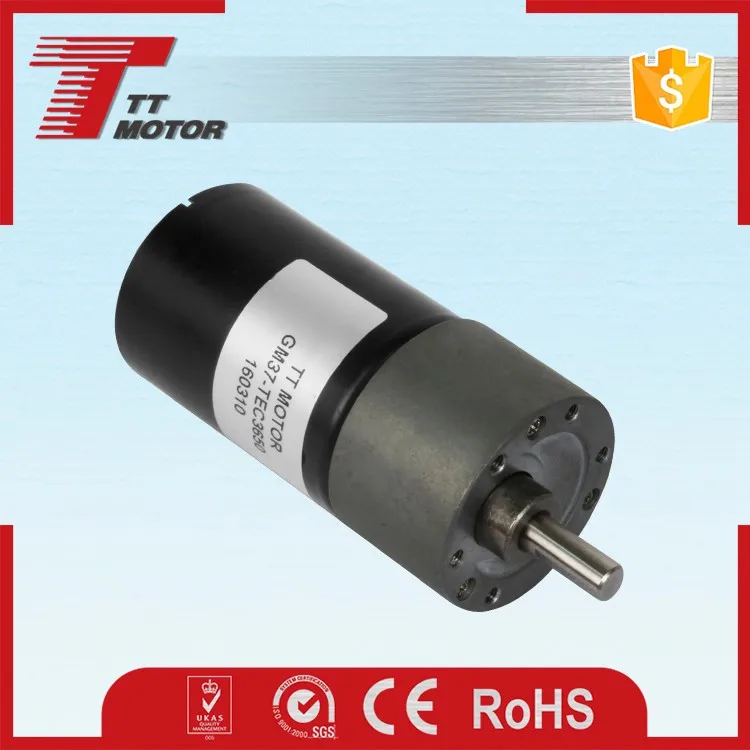

GM37-TEC3650 electric motor dc 24v brushless motor

FOB Reference Price:Get Latest Price
US $13.39-20.39 / Piece | 100 Piece/Pieces dc gear motor (Min. Order)
Supply Ability:
50000 Piece/Pieces per Month dc gear motor
Port:
Hong Kong
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TT MOTOR
Model Number:
dc gear motor GM37-TEC3650
Usage:
Electric Bicycle, Industrial equipment
Certification:
CE, ROHS, ISO9000
Type:
Gear Motor
Torque:
820-1150 g/cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Other
Speed(RPM):
6.5-830r/min
Continuous Current(A):
2A/2.5A
Output Power:
6.6W-11.5W
Voltage(V):
12V/24V
Efficiency:
65%
size:
35.7*74.3 mm
Product name:
dc brushless geared motor GM37-TEC3650
Rated voltage:
12VDC-24V DC
No-load speed:
7.5-1000r/min
No-load current:
120-200 mA
Rated torque:
0.7-10 kg.cm
Output power:
6.6-11.5W
Stall torque8:
820-1150g.cm
Stall current:
2-2.5A
Application:
Automatic Product
Packaging & Delivery
Packaging Details
dc gear motor:100-1000pcs or as you wish
Delivery Time
Shipped in 25 days after payment
Product Description

GM37-TEC3650 electric motor dc 24v brushless motor


Main Features

37mm spur gearbox plus TEC3650&3640 brushless motor
Small size dc gear motor with low speed and big torque
37mm gear motor provide 1.0Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
Reduction ratio:6、10、19、30、44、56、90、131、169、270、506、810

Model:Gear Motor GM37-TEC3650

TEC3650-2465
Rated voltage: 24VDC
Rated speed:5400r/min
Output power:11.5W
No-load speed:6500r/min
Rated torque:200g.cm
Stall torque:1150g.cm
No-load current:200mA
Rated current:1000mA
Stall current:2A

TEC3650-2440
Rated voltage: 24VDC
Rated speed:3200r/min
Output power:6.6W
No-load speed:4000r/min
Rated torque:200g.cm
Stall torque:1000g.cm
No-load current:120mA
Rated current:600mA
Stall current:2A

TEC3650-1245
Rated voltage: 12VDC
Rated speed:3500r/min
Output power:8.3W
No-load speed:4500r/min
Rated torque:230g.cm
Stall torque:820g.cm
No-load current:150mA
Rated current:800mA
Stall current:2.5A
Related Products
GM37-TEC3650-2465-xx
Reduction ratio
6
10
30
44
56
90
169
270
506
Length mm
19
19
21.5
24
24
24
26.5
26.5
29
No-load speed rpm
1000
650
215
145
110
70
38
24
12.5
Rated speed rpm
830
540
180
122
95
65
34
22
11
Rated torque kg.cm
0.7
1.2
3.6
5.2
6.5
10
10
10
10
Max.momentary tolerance torque kg.cm
2
5
15
15
15
15
15
15
15
GM37-TEC3650-2440-xx
Reduction ratio
6
10
30
44
56
90
169
270
506
Length mm
19
19
21.5
24
24
24
26.5
26.5
29
No-load speed rpm
620
380
130
90
70
43
23
14.5
7.5
Rated speed rpm
500
320
100
72
55
36
19
12.5
6.5
Rated torque kg.cm
0.7
1.2
3.6
5.2
6.5
10
10
10
10
Max.momentary tolerance torque kg.cm
2
5
15
15
15
15
15
15
15
GM37-TEC3650-1245-xx
Reduction ratio
6
10
30
44
56
90
169
270
506
Length mm
19
19
21.5
24
24
24
26.5
26.5
29
No-load speed rpm
710
430
150
100
80
50
27
17
9
Rated speed rpm
580
350
115
80
62
39
21
13
7
Rated torque kg.cm
0.9
1.6
4.1
6.1
7.7
10
10
10
10
Max.momentary tolerance torque kg.cm
3.5
5.7
15
15
15
15
15
15
15

Product Application

Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.

business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Home Entertainment and Gaming:
Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys.
Home Technologies:
Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines.
Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Personal Care:
Hair Cutting, Hair Care, Massagers.
Power Tools:
Drills and Drivers, Sanders, Grinders, Polishers, Saws.
