GMP28-395PM 12v 24v planetary gear dc motor

FOB Reference Price:Get Latest Price
US $11.62-18.62 / Pieces | 100 Piece/Pieces DC motor GM25-370CA (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TT MOTOR
Model Number:
GMP28-395PM
Usage:
Boat, Industrial equipment
Certification:
CE, ROHS, ISO9001
Type:
Gear Motor
Torque:
0.06-5kg.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Other
Speed(RPM):
4000-5000rpm
Continuous Current(A):
2.3-4A
Output Power:
3.4-4.7w
Voltage(V):
12-24V
Efficiency:
65%
Size:
mm
Product Name:
dc planetary gear motor GMP28-395PM
No-load speed:
10-1400 r/min
No-load current:
100-150mA
Rated torque:
0.3-20kg.cm
Output power:
3.4-4.7w
Stall torque:
450-600g.cm
Stall current:
2.3-4A
Rated voltage:
12-24VDC
Application:
Automatic Product
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month dc gear motor
Packaging & Delivery
Packaging Details
DC motor:100 pieces per box
Port
SHENZHENG
Lead Time :
15-30 days
Product Description

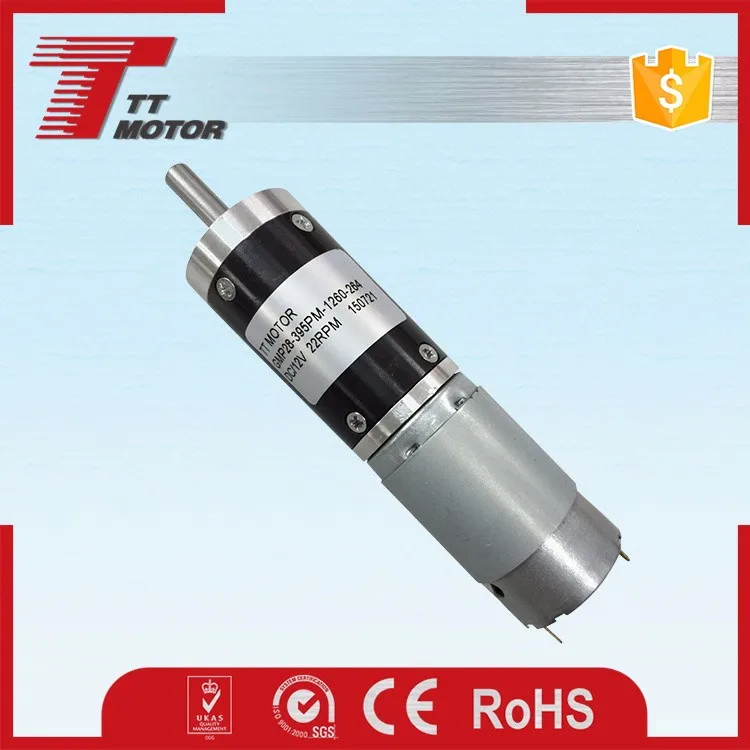

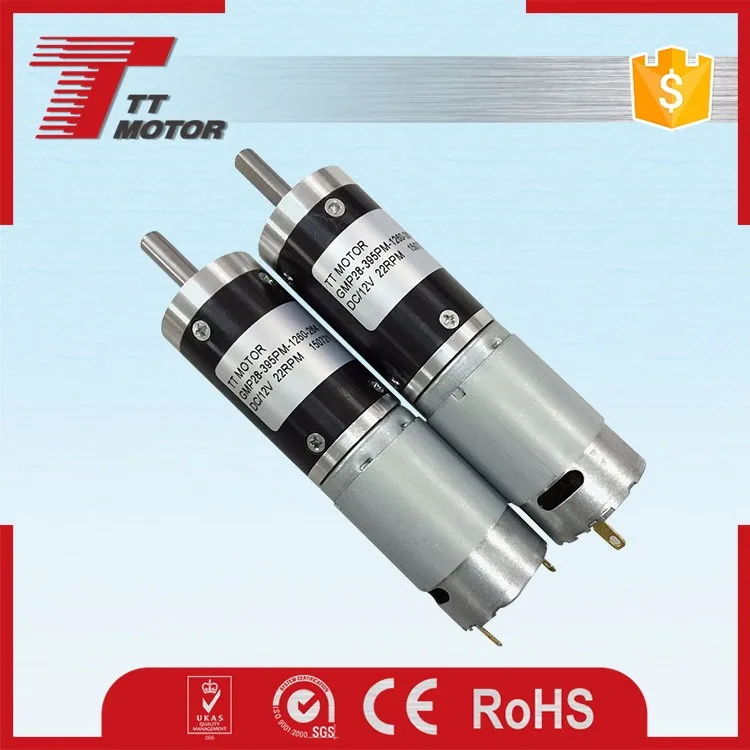

GMP28-395PM 12v 24v planetary gear dc motor


Main Features

28mm gearbox plus 395&325 permanent magnet DC motor
Small size dc gear motor with low speed and big torque
28mm gear motor provide 2.0Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
Dc gear motors can match encoder,11ppr
Reduction ratio:4、14、19、27、51、100、139、189、264、369、516、720

Model:Motor GMP28-395SP


TRS-395SP-1260
Rated voltage:12V DC
Rated speed:5000r/min
Output power:4.7W
No-load speed:6000r/min
Rated torque:90g.cm
Stall torque:600g/cm
No-load current:150mA
Rated current:650mA
Stall current:4.0A


TRS-395SP-2450
Rated voltage:24V DC
Rated speed:4000r/min
Output power:3.4W
No-load speed:8000r/min
Rated torque:80g.cm
Stall torque:450g/cm
No-load current:100mA
Rated current:220mA
Stall current:2.3A

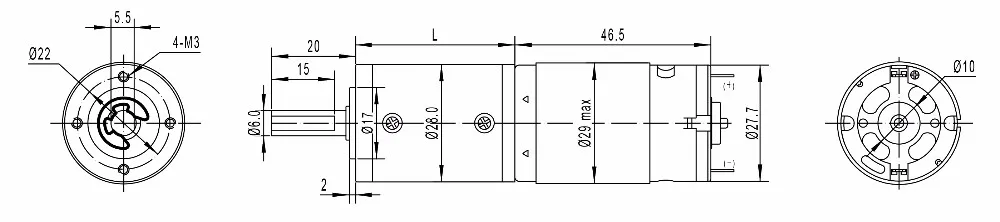

GMP28-395SP-1260-xxx
Reduction ratio
4
19
27
51
100
139
264
369
516
Length mm
28.5
36
36
43
43
50
50
50
50
No-load speed rpm
1400
300
210
110
55
31
23
16
12
Rated speed rpm
1250
260
185
100
50
26
19
14
10
Rated torque kg.cm
0.3
1.2
1.7
2.7
5.4
9
12
16
20
Max.momentary tolerance torque kg.cm
1.9
8
11
18
30
30
30
30
30
GMP28-395SP-2450-xxx
Reduction ratio
4
19
27
51
100
139
264
369
516
Length mm
28.5
36
36
43
43
50
50
50
50
No-load speed rpm
1150
240
170
90
48
26
19
14
10
Rated speed rpm
1000
210
150
80
40
21
15
11
8
Rated torque kg.cm
0.3
1.1
1.5
2.4
4.8
8
11
15
20
Max.momentary tolerance torque kg.cm
1.4
6
8.5
14
28
30
30
30
30

Product Application

Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.

Related Products
Packing & Delivery

Packaging: single carton packing, 500 pieces per box.

Shipping time:
DHL: 3-5 working days ;

UPS: 5-7 working days;

TNT: 5-7 working days;

FedEx: 7-9 working days;

EMS: 12-15 working days;

China Post: Depends on ship to which country;

Sea: Depends on ship to which country

Our Company

TT Motor (HK) Industrial Co., Ltd. has been specializing in micro motors, gear motors and their respective parts since 2000.
Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.
By leveraging our hard-won reputation for honesty, dependability and quality, TT aims to continue as a pioneer in the sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.

Certifications

FAQ

Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirn the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation

Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.

Q: Which shipping way is avaliable?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.

Q: How long is the deliver[Producing] and shipping?

A: Devliver time depends on the quantity you order. usually it takes 15-25 working days.

Q: My package has missing products. What do I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accept,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should by paid before shipping.
