Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: TT MOTOR
  • Model Number: GMP45-775PM
  • Type: planetary gear motor
  • Use: Gear
  • Motor: Brush
  • Voltage: 12V
  • Certification: ROHS
  • Warranty: 1 Years
  • No Load Speed: 28--53 RPM
  • No Load current: 1.7--1.8 A
  • At Load Speed: 22--45 RPM
  • At Load Current: 4.5--4.6 A
  • At Load Torque: 38--46 Kg.cm
  • Stall Torque: 102 Kg.cm

Packaging & Delivery

Packaging Details high torque 12v 8nm high torque dc planet gear motor: 50 pieces per box,or as you wish
Delivery Time 15-30 days
high torque 12v 8nm high torque dc planet gear motor

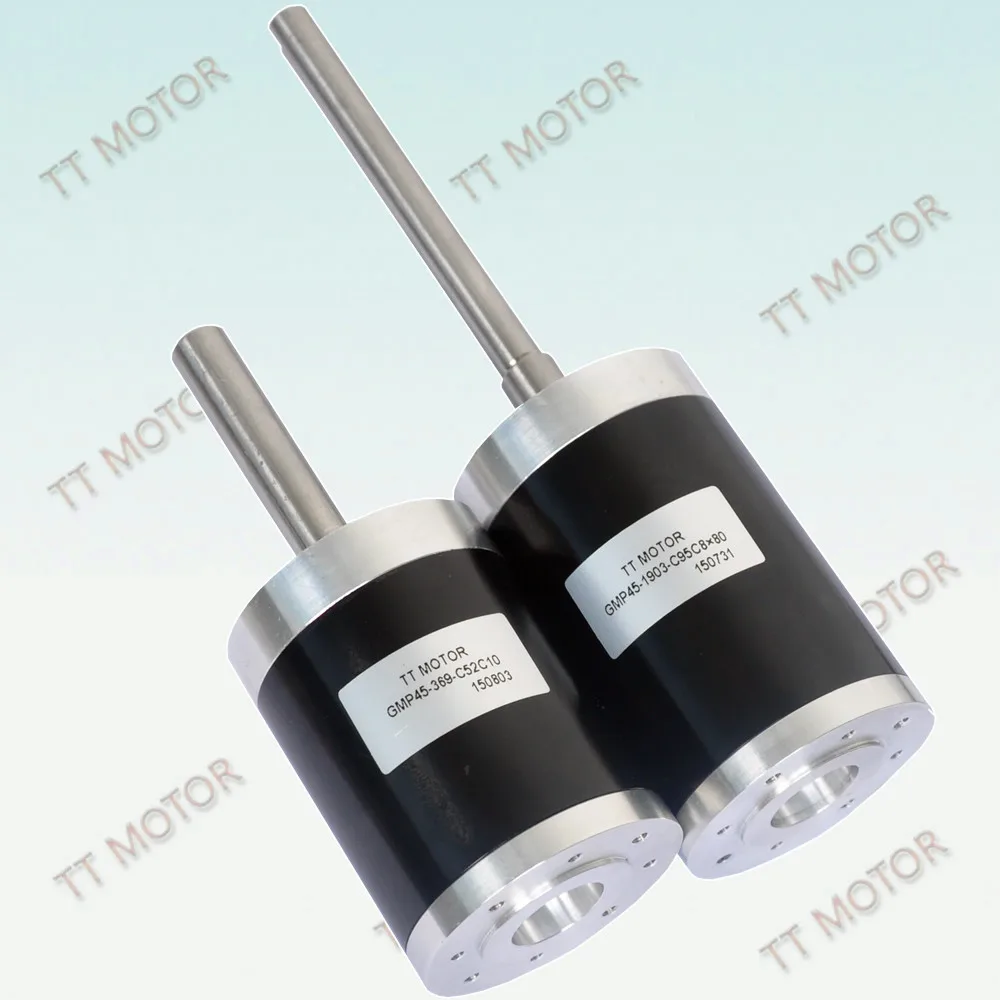

45mm dc planetary gear motor:

GMP45-775PM
45mm Planetary reducer plus 770 PM 7 series dc motor
Characters:
1. Small size dc gear motor with low speed and big torque
2. 45mm gear motor provide 10.0Nm torque max and more reliable
3. Suitable to small diameter, low noise and big toque application
4. Dc Gear motors can match encoder,3ppr,12ppr
5. Reduction Ratio: 4,14,19,51,71,100,139,189,264,369,516,720




Gear motor Technical Data

Gearbox with motor:GMP45-775PM-2460-XXX

Reduction ratio

4

19

51

100

139

189

264

369

516

720

Length mm

51.5

51.5

64.5

64.5

64.5

74.5

74.5

74.5

74.5

74.5

No-load speed   rpm

1400

295

110

58

42

32

23

16

11.5

8.3

Rated speed     rpm

1125

235

88

45

32

24

18

14

10.5

8

Rated torque     kg.cm

4.5

12

27

54

75

93

100

100

100

100

Max.momentary

tolerance torque kg.cm

11.5

48

110

210

300

300

300

300

300

300

Gearbox with motor:GMP45-775PM-0648-XXX

Reduction ratio

4

19

51

100

139

189

264

369

516

720

Length mm

51.5

51.5

64.5

64.5

64.5

74.5

74.5

74.5

74.5

74.5

No-load speed   rpm

1150

240

92

46

35

25

18

13

9.3

6.6

Rated speed     rpm

900

190

71

36

26

19

14

11

8.5

6.0

Rated torque     kg.cm

2.8

13

26

51

71

89

100

100

100

100

Max.momentary

tolerance torque kg.cm

11

54

110

216

300

300

300

300

300

300

Gearbox with motor:GMP45-775PM-1246-XXX

Reduction ratio

4

19

51

100

139

189

264

369

516

720

Length mm

51.5

51.5

64.5

64.5

64.5

74.5

74.5

74.5

74.5

74.5

No-load speed   rpm

1100

220

86

44

32

24

17

12

8.7

6.3

Rated speed     rpm

870

185

69

35

25

19

14

10.5

8.2

5.7

Rated torque     kg.cm

2.8

13

26

51

71

89

100

100

100

100

Max.momentary

tolerance torque kg.cm

11

54

110

216

300

300

300

300

300

300
