Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: worm gear motor TT MOTOR
  • Model Number: TWG1220-N30VA
  • Usage: Boat, Car, Electric Bicycle, Home Appliance, Industrial equipment
  • Certification: CE, ROHS, ISO9001
  • Type: Gear Motor
  • Torque: 200-1000 g.cm
  • Construction: Permanent Magnet
  • Commutation: Brushless
  • Protect Feature: Other
  • Speed(RPM): 4050-10700r/min
  • Continuous Current(A): 0.25-0.5A
  • Output Power: 0.1-0.35W
  • Voltage(V): 2.5,6,12 V DC
  • Efficiency: 65%
  • Size: 12*35mm
  • Product Name: TWG1220-N30VA dc worm gear motor
  • No-load speed: 5200-12500 r/min
  • No-load current: 12-25 mA
  • Rated torque: 0.05-1.0 kg.cm
  • Output power: 0.1-0.35 W
  • Stall torque: 8.5-18 g.cm
  • Stall current: 0.25-0.5 A
  • Rated voltage: 2.5-12V DC
  • Application: Automatic Product

Packaging & Delivery

Packaging Details worm gear motor :100 pieces per box
Delivery Time 30 days
Product Description

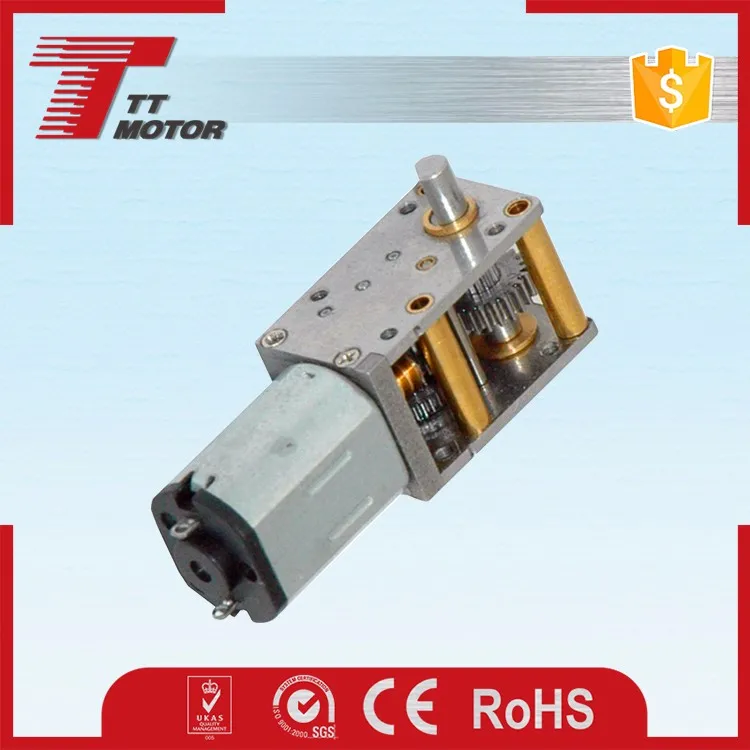

 TWG1220-N30VA 12mm dc motor low speed worm gear motor


Main Features

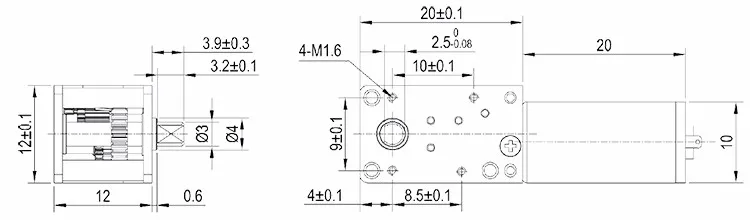

12*20mm worm gearbox plus N30VA permanent magnet DC motor
Small size dc gear motor with low speed and big torque
12*20mm gear motor provide 0.1Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
DC Gear motors can match encoder, 3ppr
Reduction ratio:41、82、95、190、219、438、504、1007

Model:Motor TWG1220-N30VA

TFF-N30VA-09210
Rated voltage:2.5V DC
Rated speed:4050r/min
Output power:0.1W
No-load speed:5200r/min
Rated torque:2.0g.cm
Stall torque:8.5g/cm
No-load current:20mA
Rated current:60mA
Stall current:0.25A

TFF-N30VA-09190
Rated voltage:6.0V DC
Rated speed:10700r/min
Output power:0.35W
No-load speed:12500r/min
Rated torque:3.0g.cm
Stall torque:18g/cm
No-load current:25mA
Rated current:95mA
Stall current:0.5A

          TFF-N30VA-06350
Rated voltage:12V DC
Rated speed:10700r/min
Output power:0.35W
No-load speed:12500r/min
Rated torque:3.0g.cm
Stall torque:18g/cm
No-load current:12mA
Rated current:45mA
Stall current:0.25A
TWG1220-N30VA-09210
Reduction ratio
41
82
95
190
219
438
504
1007
Length mm
20
20
20
20
20
20
20
20
No-load speed rpm
120
60
53
26
23
11
10
5
Rated speed rpm
100
50
43
21
19
9
8
4
Rated torque kg.cm
0.05
0.1
0.11
0.22
0.24
0.48
0.5
1.0
Max.momentary tolerance torque kg.cm
0.21
0.4
0.5
1.0
1.1
2.0
3.0
3.0
TWG1220-N30VA-09190
Reduction ratio
41
82
95
190
219
438
504
1007
Length mm
20
20
20
20
20
20
20
20
No-load speed rpm
300
150
130
65
56
28
25
12
Rated speed rpm
260
130
110
55
49
24
21
11
Rated torque kg.cm
0.07
0.14
0.17
0.34
0.36
0.7
0.8
1.0
Max.momentary tolerance torque kg.cm
0.5
1.0
1.0
2.1
2.2
3.0
3.0
3.0
TWG1220-N30VA-060350
Reduction ratio
41
82
95
190
219
438
504
Length mm
20
20
20
20
20
20
20
No-load speed rpm
300
150
130
65
56
28
25
Rated speed rpm
260
130
110
55
49
24
21
Rated torque kg.cm
0.07
0.14
0.17
0.34
0.36
0.7
0.8
Max.momentary tolerance torque kg.cm
0.5
1.0
1.0
2.1
2.2
3.0
3.0

Product Application

Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.
