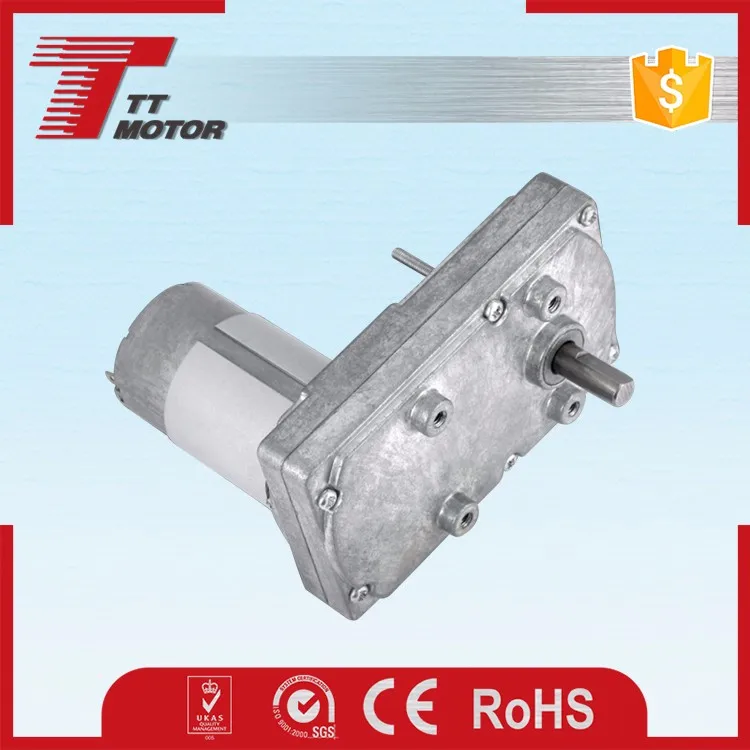

GM100F-555PM High torque electric geared motor 24v dc

FOB Reference Price:Get Latest Price
US $15.39-18.39 / Pieces | 100 Piece/Pieces 12v planetary geared motor (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TT MOTOR
Model Number:
GM100F-555PM
Usage:
Boat, Car, Electric Bicycle, Home Appliance, Industrial equipment
Certification:
CE, ROHS, ISO9001
Type:
Gear Motor
Torque:
200-1000 g.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Explosion-proof
Speed(RPM):
2800-6000r/min
Continuous Current(A):
0.15-0.3A
Output Power:
5.7-16 W
Voltage(V):
12,24 V DC
Efficiency:
65%
Size:
100*60 mm
Product Name:
dc gear motor GM100F-555PM
No-load speed:
4-155 r/min
No-load current:
0.15-0.3A
Rated torque:
6-50kg.cm
Output power:
5.7-16 W
Stall torque:
1000-2200g.cm
Stall current:
2.7-15A
Rated voltage:
12-24V DC
Application:
Automatic Product
SupplyAbility
SupplyAbility:
100000 Piece/Pieces per Month 12v planetary geared motor
Packaging & Delivery
Packaging Details
24 volt dc motor :100 pieces per box
Port
SHENZHENG
Lead Time :
30 days
Product Description

GM100F-555PM High torque electric geared motor 24v dc


Main Features

100x60mm Eccentric out shaft gearbox plus 555PM DC motor
Small size dc gear motor with low speed and big torque
100*60mm gear motor provide 5.0Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
DC Gear motors can match encoder, 11ppr
Reduction ratio:37、67、111、222、293、365、583、772、960

Model:Motor GM100F-555PM

TRS-555PM-1223
Rated voltage:12V DC
Rated speed:2800r/min
Output power:5.7W
No-load speed:3300r/min
Rated torque:200g.cm
Stall torque:1150g/cm
No-load current:0.2A
Rated current:1.0A
Stall current:5.5A

TRS-555PM-1260
Rated voltage:12V DC
Rated speed:5250r/min
Output power:16W
No-load speed:6000r/min
Rated torque:290g.cm
Stall torque:2200g/cm
No-load current:0.3A
Rated current:2.4A
Stall current:15A

          TRS-555PM-2440
Rated voltage:24V DC
Rated speed:3150r/min
Output power:6.4W
No-load speed:4000r/min
Rated torque:200g.cm
Stall torque:1000g/cm
No-load current:0.15A
Rated current:0.7A
Stall current:2.7A
GM100F-555PM-1223-XX
Reduction ratio
37
67
111
222
293
365
583
772
960
Length mm
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
No-load speed rpm
85
48
29
15
11
9
6
4
3
Rated speed rpm
75
42
25
13
10
8
5
3
2
Rated torque kg.cm
4.4
8
13
22
29
36
50
50
50
Max.momentary tolerance torque kg.cm
26
46
76
100
100
100
100
100
100
GM100F-555PM-1260-XX
Reduction ratio
37
67
111
222
293
365
583
772
960
Length mm
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
No-load speed rpm
155
87
53
27
20
16
10
8
6
Rated speed rpm
140
78
47
24
18
14
9
7
5
Rated torque kg.cm
6
12
19
32
42
50
50
50
50
Max.momentary tolerance torque kg.cm
49
88
100
100
100
100
100
100
100
GM100F-555PM-2440-xx
Reduction ratio
37
67
111
222
293
365
583
772
960
Length mm
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
No-load speed rpm
100
58
36
18
13
11
7
5
4
Rated speed rpm
85
47
28
14
11
9
5
4
3
Rated torque kg.cm
4.4
8
13
22
29
36
50
50
50
Max.momentary tolerance torque kg.cm
26
46
76
100
100
100
100
100
100

Product Application

Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.
