Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: TT MOTOR
  • Model Number: gear motor GM37-520TB
  • Usage: Boat, Industrial equipment
  • Certification: CE, ROHS, ISO9001
  • Type: Gear Motor
  • Torque: 0.1-6.5kg.cm
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Protect Feature: Other
  • Speed(RPM): 6-690rpm
  • Continuous Current(A): 0.06-0.12A
  • Output Power: 0.88w
  • Voltage(V): 12 V 24v
  • Efficiency: 65%
  • Size: 37.0*42.0mm
  • Product Name: dc gear motor GM37-520TB
  • Gear Type: spur Teeth
  • Output Shaft: Steel Hardened
  • Main Gear: Steel Hardened
  • Housing: Zinc Alloy
  • Bearing At Output: Sleeve Bearing
  • Axial Play: 0.05-0.5mm
  • Directions: CW/CCW
  • Backlash: <3°

Packaging & Delivery

Packaging Details gear motor dc 12 v 20 rpm:
100 pieces per box
Delivery Time 15-30 days
Product Description

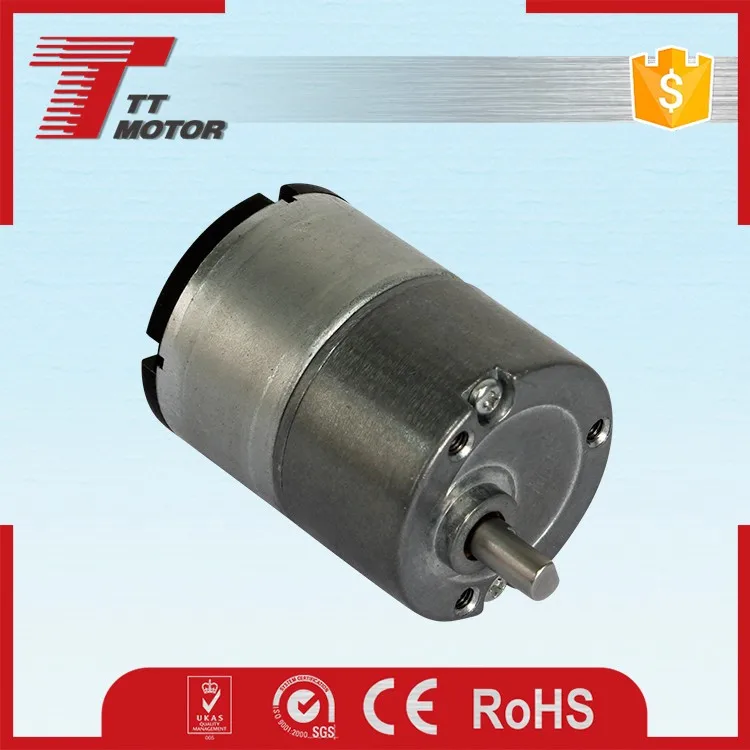

GM37-520TB 37mm electric dc motor gear 12v


Main Features

37mm Eccentric out shaft gearbox plus 520 & 3530 & 3527 and 3650 &3640
Small size dc gear motor with low speed and big torque
37mm gear motor provide 1.0Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
Dc Gear motors can match encoder,11ppr
Reduction ratio:6、10、19、30、44、56、90、131、169、270、506、810

Model:Motor GM37-520TB


TRK-520TB-2450
Rated voltage: 12VDC
Rated speed:4300r/min
Output power:0.88W
No-load speed:5000r/min
Rated torque:20g.cm
Stall torque:140g.cm
No-load current:10mA
Rated current:60mA
Stall current:0.45A


TRK-520TB-1250
Rated voltage: 12VDC
Rated speed:4300r/min
Output power:0.88W
No-load speed:5000r/min
Rated torque:20g.cm
Stall torque:140g.cm
No-load current:20mA
Rated current:120mA
Stall current:0.9A
GM37-520TB-2450-xxx
Reduction ratio
6
10
19
30
56
90
169
270
506
Length mm
19
19
21.5
21.5
24
24
26.5
26.5
29
No-load speed rpm
740
480
255
160
89
55
30
19
10
Rated speed rpm
690
430
255
140
77
48
25
16
8.5
Rated torque kg.cm
0.1
0.16
0.27
0.42
0.67
1.1
1.9
2.7
5.1
Max.momentary tolerance torque kg.cm
0.7
1.1
1.8
02.9
4.7
7.5
15
15
15
GM37-520TB-1250-xxx
Reduction ratio
6
10
19
30
56
90
169
270
506
Length mm
19
19
21.5
21.5
24
24
26.5
26.5
29
No-load speed rpm
740
480
225
140
89
55
30
19
10
Rated speed rpm
690
430
225
140
77
48
25
16
8.5
Rated torque kg.cm
0.1
0.16
0.27
0.42
0.67
1.1
1.9
2.7
5.1
Max.momentary tolerance torque kg.cm
0.7
1.1
1.8
2.9
4.7
7.5
15
15
15

Product Application

Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.

business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Home Entertainment and Gaming:
Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys.
Home Technologies:
Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines.
Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Personal Care:
Hair Cutting, Hair Care, Massagers.
Power Tools:
Drills and Drivers, Sanders, Grinders, Polishers, Saws.
Camera and Optical:
Video, Cameras, Projectors.
Related Products
Packing & Delivery

Packaging: single carton packing, 500 pieces per box.

Shipping time:
DHL: 3-5 working days ;

UPS: 5-7 working days;

TNT: 5-7 working days;

FedEx: 7-9 working days;

EMS: 12-15 working days;

China Post: Depends on ship to which country;

Sea: Depends on ship to which country

Our Company

TT Motor (HK) Industrial Co., Ltd. has been specializing in micro motors, gear motors and their respective parts since 2000.
Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide.
By leveraging our hard-won reputation for honesty, dependability and quality, TT aims to continue as a pioneer in the sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.

Certifications
FAQ

Q: How to order?
A: send us inquiry → receive our quotation → negotiate details → confirn the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation

Q: How about Sample order?
A: Sample is available for you. please contact us for details. Once we charge you sample fee, please feel easy, it would be refund when you place formal order.

Q: Which shipping way is avaliable?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.

Q: How long is the deliver[Producing] and shipping?

A: Devliver time depends on the quantity you order. usually it takes 15-25 working days.

Q: My package has missing products. What do I do?
A: Please contact our support team and we will confirm your order with the package contents.We apologize for any inconveniences.
Q: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accept,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should by paid before shipping.
