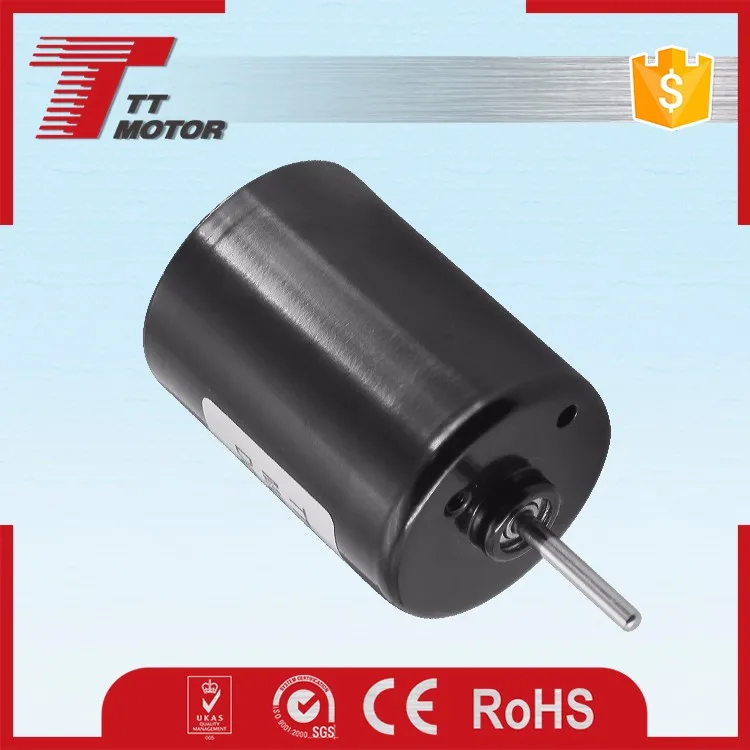

TEC3650 12v electric motor dc brushless motor for fan

FOB Reference Price:Get Latest Price
$10.00 - $15.00 / Pieces | 100 Piece/Pieces (Min. Order)
Voltage(V):
24V
Output Power:
6.6-11w
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
TT MOTOR
Model Number:
low rpm high torque dc motor TEC3650
Usage:
Boat, Home Appliance, Medical Instrument
Certification:
CE, ROHS, ISO9001
Type:
Gear Motor
Torque:
0.6-30kg.cm
Construction:
Permanent Magnet
Commutation:
Brushless
Protect Feature:
Explosion-proof
Speed(RPM):
1000-1800g.cm
Continuous Current(A):
3A
Efficiency:
65%
Size:

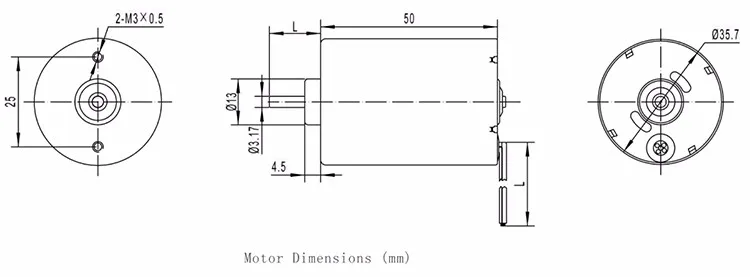

35.7*81.5 mm
Product Name:
low rpm high torque dc motor TEC3650
No-load speed:
4000-6500 r/min
No-load current:
120mA-200mA
Rated torque:
200.cm
Output power:
6.6-11W
Stall torque:
1000-1800g.cm
Stall current:
3.0A
Rated voltage:
24VDC
Application:
Automatic Product
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month electric motor
Packaging & Delivery
Packaging Details
electric motor 100 pieces per box
Port
HK
Product Description

TEC3650 12v dc motor 6000 rpm for medical machine


Main Features

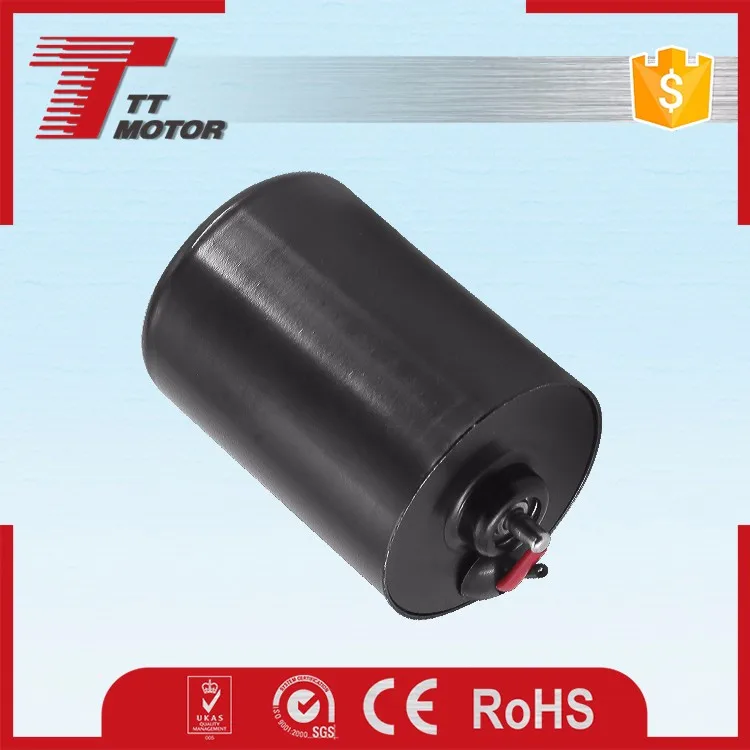

36mm brushless motor
Low noise, long life. Built-in drive. Power on, then work
Reverse rotation and Brake control
PWM Speed control and FG signal feedback
Can be available with planetary gearbox

Model:Motor TEC3650


TEC3650-2465
Rated voltage: 24VDC
Rated speed:5400r/min
Output power:11.5W
No-load speed:6500r/min
Rated torque:200g.cm
Stall torque:1150g.cm
No-load current:200mA
Rated current:1000mA
Stall current:2.0A


TEC3650-2440
Rated voltage: 24VDC
Rated speed:3200r/min
Output power:6.6W
No-load speed:4000r/min
Rated torque:200g.cm
Stall torque:1000g.cm
No-load current:120mA
Rated current:600mA
Stall current:2.0A

Product Application

Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.
