Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: TT MOTOR
  • Model Number: brushless motor GMP28-385SP
  • Usage: Boat, Electric Bicycle, Medical equipment
  • Certification: CE, ISO9001
  • Type: Gear Motor
  • Torque: 2.0Nm
  • Construction: Permanent Magnet
  • Commutation: Brushless
  • Protect Feature: Other
  • Speed(RPM): 3250-4000r/min
  • Continuous Current(A): 0.7-2.5mA
  • Output Power: 1.6-3.2W
  • Voltage(V): 6v/12V/24V
  • Efficiency: 65%
  • size: 28.0*86.3mm
  • Output Shaft: Stainless steel hardened
  • No-load speed: spur teeth
  • Main Gear: Alloy steel
  • Ring Gear: Steel
  • Adapter plate: Aluminium alloy
  • Bearing at output: Ball bearing
  • Directions: CW/CCW
  • Reduction ratio: 3-3730
  • Product name: brushless motor GMP28-385SP

Packaging & Delivery

Packaging Details brushless motor:60 pieces per box,or as you wish.
Delivery Time 15-20 days
Product Description

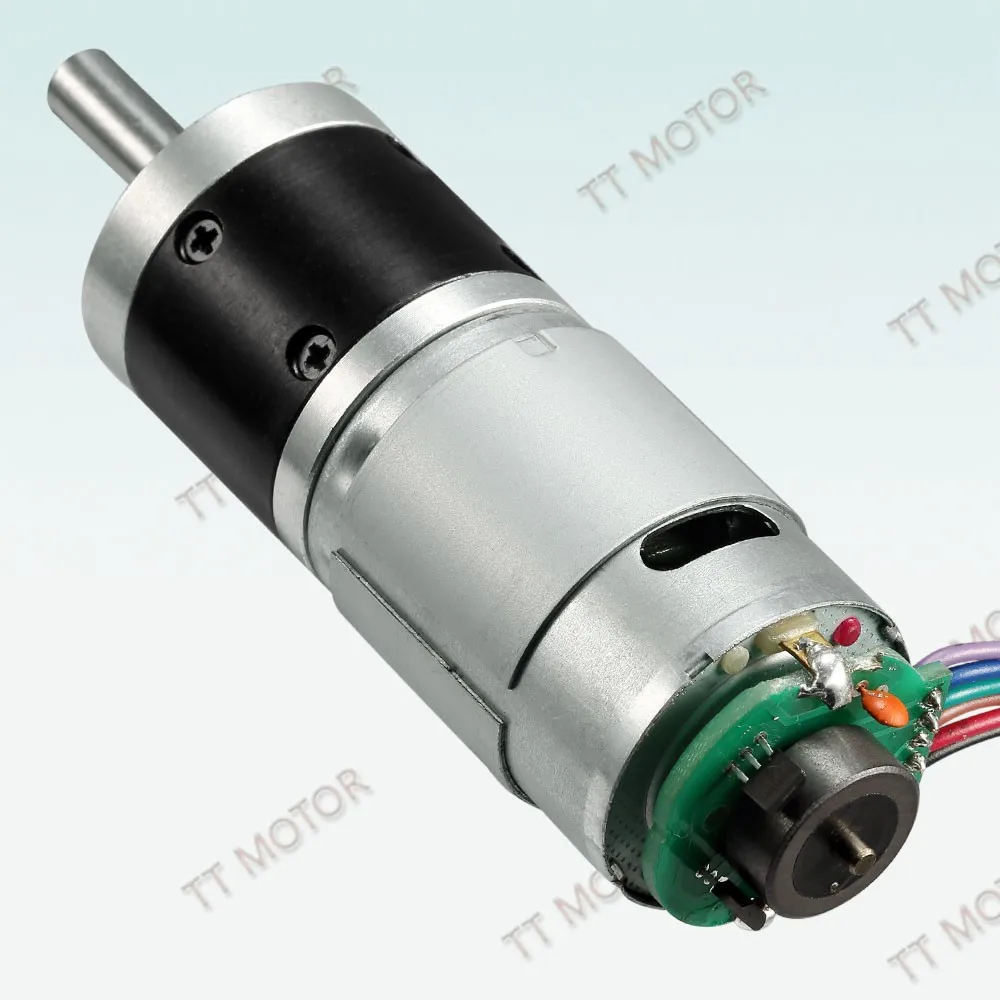

planetary gearbox reducer 24v dc motor electric with encoder

Product Description
28mm gearbox plus 380 & 385 permanent magnet DC motor & 28mm brushless motor
Small size dc gear motor with low speed and big torque
28mm gear motor provide 2.0Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
DC Gear motor can match encoder,11ppr
Reduction ratio:4、14、19、27、51、71、100、139、189、264、369、516、720

Model: DC Motor GMP28-385SP
Motor model no.
Rated voltage
No-load speed
No-load current
Rated speed
Rated torque
Rated current
Output power
Stall torque
Stall current
VDC
r/min
mA
r/min
g.cm
mA
W
g.cm
A
TRS-385SP-0640
6
4000
200
3250
45
600
1.6
250
2.5
TRS-385SP-1265
12
6500
150
5200
60
500
3.2
310
2.0
TRS-385SP-2454
24
5400
100
4000
60
200
2.5
240
0.7
GMP28-385SP-0640-xxx
Reduction ratio
4
19
27
51
100
189
264
369
516
Length mm
28.5
36
36
43
43
50
50
50
50
No-load speed rpm
900
190
140
75
38
20
15
11
8
Rated speed rpm
810
170
120
64
32
17
12
9
6
Rated torque kg.cm
0.14
0.6
0.9
1.4
2.7
4.7
6
8
11
Max.momentary tolerance torque kg.cm
0.8
3.3
4.7
7.6
15
26
30
30
30
GMP28-385SP-1265-xxx
Reduction ratio
4
19
27
51
100
189
264
369
516
Length mm
28.5
36
36
43
43
50
50
50
50
No-load speed rpm
1500
330
230
120
63
34
23
16
12
Rated speed rpm
1300
270
190
100
52
27
20
14
10
Rated torque kg.cm
0.19
0.8
1.1
1.8
3.6
6
8
11
15
Max.momentary tolerance torque kg.cm
1.0
4.1
5.8
9.5
19
30
30
30
30
GMP28-385SP-2454-xxx
Reduction ratio
4
19
27
51
100
189
264
369
516
Length mm
28.5
36
36
43
43
50
50
50
50
No-load speed rpm
1250
270
190
100
50
29
20
15
10
Rated speed rpm
1000
210
150
78
40
21
15
11
8
Rated torque kg.cm
0.19
0.8
1.1
1.8
3.6
6
8
11
15
Max.momentary tolerance torque kg.cm
0.8
3.2
4.5
7.3
14
25
30
30
30

Product Application

Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.
