Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: TT Motor
  • Model Number: GM37-555PM
  • Usage: Home Appliance, cordless drill
  • Certification: ROHS
  • Type: Gear Motor
  • Torque: 10.0Kg.cm max
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Speed(RPM): 7-870rpm
  • Continuous Current(A): 0.7-1A
  • Output Power: 5.7-16w
  • Voltage(V): 12 V 24V
  • Product Name: dc gear motor GM37-555PM
  • Size: 37.0*76mm
  • No-load speed: 12-900 rpm
  • No-load current: 150, 200, 300 mA
  • Rated torque: 1.0-10.0 kg.cm
  • Output power: 5.7, 6.4, 16 W
  • Stall torque: 1000, 1150, 2200 g.cm
  • Stall current: 2.7, 5.5, A
  • Rated voltage: 12, 24V DC
  • Application: Automatic Product

Packaging & Delivery

Packaging Details 50pcs per box
Delivery Time 20-25 days
12v electric dc gear reducing motor

GM37-555PM
Application
  • Financial apparatus, Accessory of automobile, Mini mechanism.
  • Ad equipment, Medical instrument
  • Paper feeder, personal care,fan



Characters

  • size:37.0*76.0mm
  • torque:1.0-10kg.cm
  • speed:7rpm-870rpm
  • low noise, low current no spark
  • 5 slots with a bigger torque
  • motor with encoder, 16 pulse signal
  • reduction ration:  6,10,19,30,44,56,90,131,169,270,506,810
  • samples can be sent first, and the delivery time is 15-20 days.

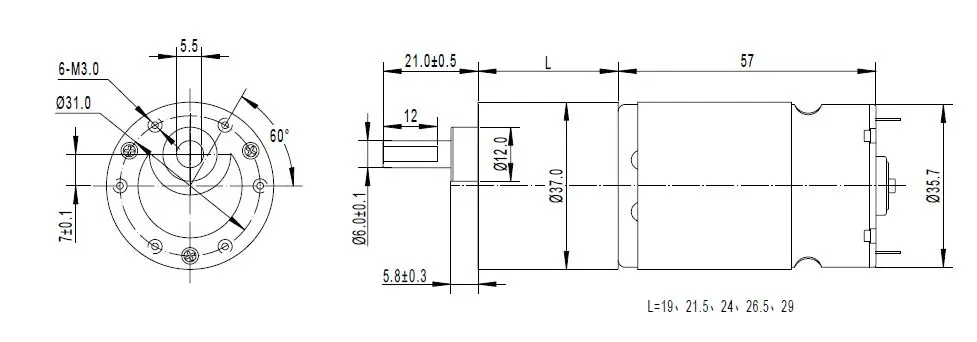

Parameters and dimension of 12v high torque dc motor for cordless drill



Gearbox with motor:GM37-555PM-1233-XXX-12V



Reduction ratio

6

10

19

30

56

90

169

270

506

810

Length  mm

19

19

21.5

21.5

24

24

26.5

26.5

29

29

No-load speed    rpm

500

300

160

105

57

36

20

12

6.5

4

Rated speed     rpm

450

280

150

90

50

31

18

11

6.3

4

Rated torque     kg.cm

1.0

1.6

2.7

4.2

6.7

10

10

10

10

10

Max.momentary

tolerance torque  kg.cm

5.5

9.2

15

15

15

15

15

15

15

15



Gearbox with motor:GM37-555PM-1260-XXX-12V



Reduction ratio

6

10

19

30

56

90

169

270

506

810

Length  mm

19

19

21.5

21.5

24

24

26.5

26.5

29

29

No-load speed    rpm

900

550

300

190

100

65

35

22

12

7

Rated speed     rpm

870

525

275

175

90

61

34

22

12

7

Rated torque     kg.cm

1.4

2.3

3.8

6.1

10

10

10

10

10

10

Max.momentary

tolerance torque  kg.cm

10

15

15

15

15

15

15

15

15

15



Gearbox with motor:GM37-555PM-2440-XXX-24V



Reduction ratio

6

10

19

30

56

90

169

270

506

810

Length  mm

19

19

21.5

21.5

24

24

26.5

26.5

29

29

No-load speed    rpm

600

360

200

120

65

45

24

15

8

5

Rated speed      rpm

520

315

165

105

56

36

21

14

5

5

Rated torque     kg.cm

1.0

1.6

2.7

4.2

6.7

10

10

10

10

10

Max.momentary

tolerance torque  kg.cm

4.8

8.0

15

15

15

15

15

15

15

15
