Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: TT MOTOR
  • Model Number: electric motor 12v dc GMP24-TEC2419
  • Usage: Boat, Car, Electric Bicycle, Home Appliance, Industrial equipment
  • Certification: CE, ROHS, ISO9001
  • Type: Gear Motor
  • Torque: 0.5 Kg.cm
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Protect Feature: Explosion-proof
  • Speed(RPM): 4800-7000 rpm
  • Continuous Current(A): 70-90 mA
  • Output Power: 1.4-2.5 W
  • Voltage(V): 12, 24V DC
  • Efficiency: 65%
  • Product Name: dc planetary brushless motor GMP24-TEC2419
  • Size: 24*65mm
  • No-load speed: 15-440rpm
  • No-load current: 70-90mA
  • Rated torque: 0.2-3.6kg.cm
  • Output power: 1.4-2.5 W
  • Stall torque: 105-130g.cm
  • Stall current: 0.7-0.75A
  • Rated voltage: 12, 24V DC
  • Application: Automatic Product

Packaging & Delivery

Packaging Details electric motor 12v dc
DC Gear Motors:100 pieces per box
Delivery Time 30 days
Product Description

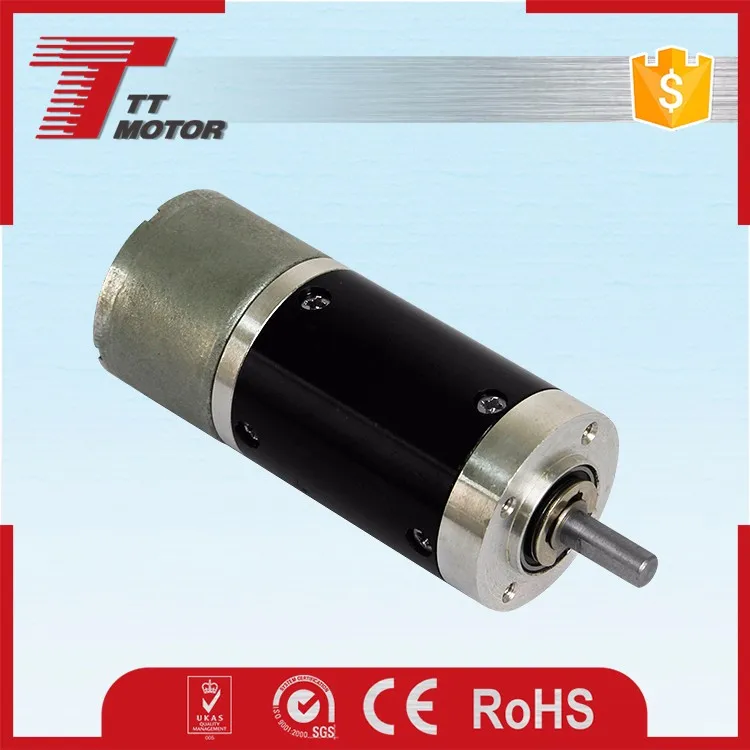

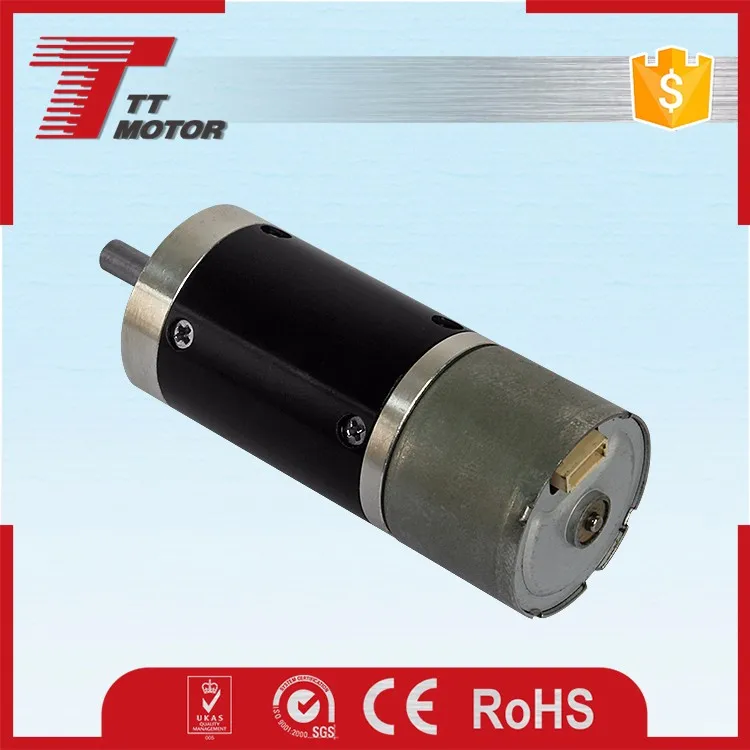

GMP24-TEC2419 electric motor dc brushless 24v geared motor


Main Features

24mm planetary gearbox plups 24mm brushless motor
Small size dc gear motor with low speed and big torque
24mm gear motor provide 0.5Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
Dc Gear motors can match encoder,11ppr
Reduction ratio:4、19、27、51、71、100、139、189、264、369、516、720

Model:Motor GMP24-TEC2419


TEC2419-1262
Rated voltage:12V DC
Rated speed:4800r/min
Output power:1.4W
No-load speed:6200r/min
Rated torque:20g.cm
Stall torque:105g/cm
No-load current:90mA
Rated current:180mA
Stall current:0.75A


TEC2419-2487
Rated voltage:24V DC
Rated speed:7000r/min
Output power:2.5W
No-load speed:8700r/min
Rated torque:20g.cm
Stall torque:130g/cm
No-load current:70mA
Rated current:180mA
Stall current:0.70A
GMP24-TEC2419-1262-x
Reduction ratio
19
27
51
71
100
139
189
264
369
Length mm
23
23
33
33
33
33
38
38
38
No-load speed rpm
300
210
120
85
60
44
31
22
15
Rated speed rpm
250
175
90
65
45
32
24
17
12
Rated torque kg.cm
0.2
0.3
0.6
0.8
1.2
1.6
1.8
2.6
3.6
Max.momentary tolerance torque kg.cm
1.5
2.0
3.2
4.5
6.3
8.7
10
10
10
GMP24-TEC2419-2487-x
Reduction ratio
19
27
51
71
100
139
189
264
369
Length mm
23
23
3
33
33
33
38
38
38
No-load speed rpm
440
310
160
120
85
60
45
32
32
Rated speed rpm
350
245
130
90
65
50
35
25
18
Rated torque kg.cm
0.2
0.3
0.6
0.8
1.2
1.6
1.8
2.6
3.6
Max.momentary tolerance torque kg.cm
1.7
2.4
4.0
5.5
7.8
10
10
10
10

Product Application

Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.
