Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: TT MOTOR
  • Model Number: DC Gear Motors GM100F-555PM
  • Usage: Boat, Industrial equipment
  • Certification: CE, ROHS, ISO9001
  • Type: Gear Motor
  • Torque: 1000g.cm-2200g.cm
  • Construction: Permanent Magnet
  • Commutation: Brush
  • Protect Feature: Other
  • Speed(RPM): 3300-6000r/min
  • Continuous Current(A): 2.7A-15A
  • Output Power: 6.4-16W
  • Voltage(V): 12VDC 24VDC
  • Efficiency: 65%
  • Size: 60*100mm
  • Product Name: DC Gear Motors GM100F-555PM
  • No-load speed: 3-80r/min
  • No-load current: 150-300mA
  • Rated torque: 4.4-50kg.cm
  • Output power: 6.4-16W
  • Stall torque: 1000g.cm-2200g.cm
  • Stall current: 2.7A-15A
  • Rated voltage: 12VDC-24V DC
  • Application: Automatic Product

Packaging & Delivery

Packaging Details DC Gear Motors :100 pieces per box
Delivery Time 15-30 days
Product Description

GM100F-555PM 100mm dc gear motor or 24v micro dc motor



Main Features

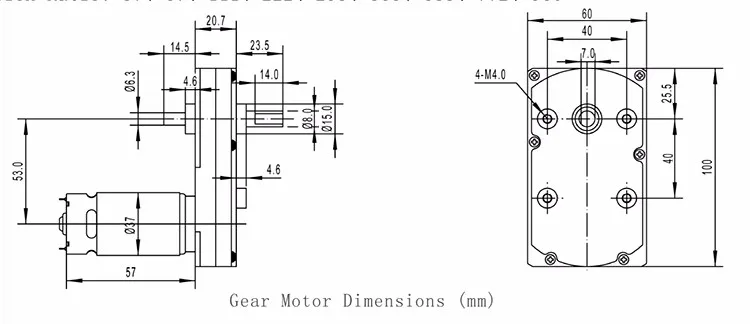

100x60mm Eccentric out shaft gearbox plus 555PM DC motor
Small size dc gear motor with low speed and big torque
100x60mm gear motor provide 5.0Nm torque max and more reliable
Suitable to small diameter, low noise and big torque application
DC Gear motors can match encoder, 11ppr
Reduction ratio:37、67、111、222、293、365、583、772、960

Model:Gear Motor GM100F-555PM


TRS-555PM-1233
Rated voltage: 12VDC
Rated speed:2800r/min
Output power:5.7W
No-load speed:3300r/min
Rated torque:200g.cm
Stall torque:1150g.cm
No-load current:200mA
Rated current:1000mA
Stall current:5.5A


TRS-555PM-1260
Rated voltage: 12VDC
Rated speed:5250r/min
Output power:16W
No-load speed:6000r/min
Rated torque:290g.cm
Stall torque:2200g.cm
No-load current:300mA
Rated current:2400mA
Stall current:15A


TRS-555PM-2440
Rated voltage: 24VDC
Rated speed:3150r/min
Output power:6.4W
No-load speed:4000r/min
Rated torque:200g.cm
Stall torque:1000g.cm
No-load current:150mA
Rated current:700mA
Stall current:2.7A
Related Products
GM100F-555PM-1233-xx
Reduction ratio
37
67
111
222
293
365
583
772
960
Length mm
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
No-load speed rpm
85
48
29
15
11
9
6
4
3
Rated speed rpm
75
42
25
13
10
8
5
3
2
Rated torque kg.cm
4.4
8
13
22
29
36
50
50
50
Max.momentary tolerance torque kg.cm
26
46
76
100
100
100
100
100
100
GM100F-555PM-1260-xx
Reduction ratio
37
67
111
222
293
365
583
772
960
Length mm
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
No-load speed rpm
155
87
53
27
20
16
10
8
6
Rated speed rpm
140
78
47
24
18
14
9
7
5
Rated torque kg.cm
6
12
19
32
42
50
50
50
50
Max.momentary tolerance torque kg.cm
49
88
100
100
100
100
100
100
100
GM100F-555PM-2440-xx
Reduction ratio
37
67
111
222
293
365
583
772
960
Length mm
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
20.7
No-load speed rpm
100
58
36
18
13
11
7
5
4
Rated speed rpm
85
47
28
14
11
9
5
4
3
Rated torque kg.cm
4.4
8
13
22
29
36
50
50
50
Max.momentary tolerance torque kg.cm
26
46
76
100
100
100
100
100
100

Product Application

Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.
