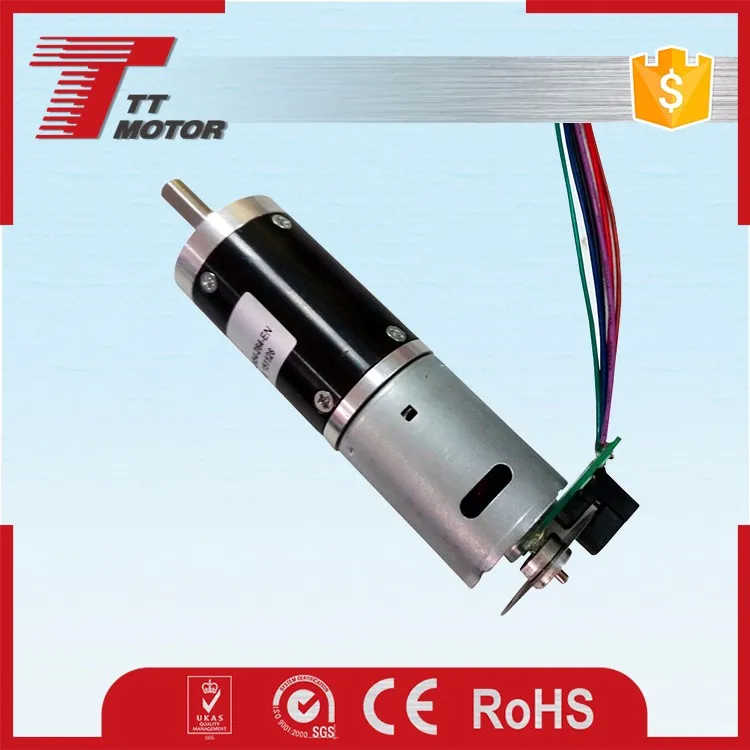

GMP28-385 28mm 12V dc gear bldc motor

FOB Reference Price:Get Latest Price
$6.00 - $43.00 / Pieces | 100 Piece/Pieces (Min. Order)
Voltage(V):
6V/12V24V
Output Power:
1.6-3.2w
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TT MOTOR
Model Number:
GMP28-385
Usage:
Boat, Industrial equipment
Certification:
CE, ROHS, ISO9001
Type:
Gear Motor
Torque:
0.5-30kg.cm
Construction:
Permanent Magnet
Commutation:
Brush
Protect Feature:
Other
Speed(RPM):
3250-5200 r/min
Continuous Current(A):
0.7-2.5mA
Efficiency:
65%
Size:
27.7* 86.3mm
Product Name:
bldc motor GMP28-385
No-load speed:
4000-6500rpm
No-load current:
100-200mA
Rated torque:
45-60g.cm
Output power:
1.6-3.2w
Stall torque:
240-310g.cm
Stall current:
0.7-2.5mA
Rated voltage:
6VDC-24VDC
Application:
Automatic Product
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month bldc motor
Packaging & Delivery
Packaging Details
bldc motor:100 pieces per box
Port
SHENZHENG
Product Description

GMP28-385 28mm 12V dc gear bldc motor

Main Features

28mm gearbox plus 380&385 permanent magnet DC motor & 28mm brushless motor
Small size dc gear motor with low speed and big torque
28mm gear motor provide 2.0Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
Dc Gear motors can match encoder,11ppr
Reduction ratio:4、14、19、27、51、71、100、139、189、264、369、516、720

Model:Motor GMP28-385


TRS-385SP-0640
Rated voltage:6V DC
Rated speed:3250r/min
Output power:1.6W
No-load speed:4000r/min
Rated torque:45g.cm
Stall torque:250g/cm
No-load current:200mA
Rated current600mA
Stall current:2.5A


TRS-385SP-1265
Rated voltage:12V DC
Rated speed:5200r/min
Output power:3.2W
No-load speed:6500r/min
Rated torque:60g.cm
Stall torque:310g/cm
No-load current:150mA
Rated current:500mA
Stall current:2.0A


TRS-385SP-2454
Rated voltage:24V DC
Rated speed:4000r/min
Output power:2.5W
No-load speed:5400r/min
Rated torque:60g.cm
Stall torque:240g/cm
No-load current:100mA
Rated current:200mA
Stall current:0.7A
GMP28-385SP-0640-xxx
Reduction ratio
4
19
27
51
100
189
264
369
516

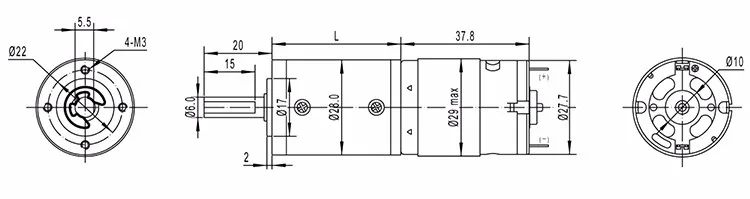

Length mm
28.5
36
36
43
43
50
50
50
50
No-load speed rpm
900
190
140
75
38
20
15
11
8
Rated speed rpm
810
170
120
64
32
17
12
9
6
Rated torque kg.cm
0.14
0.6
0.9
1.4
2.7
4.7
6
8
11
Max.momentary tolerance torque kg.cm
0.8
3.3
4.7
7.6
15
26
30
30
30
GMP28-385SP-1265-xxx
Reduction ratio
4
19
27
51
100
189
264
369
516
Length mm
28.5
36
36
43
43
50
50
50
50
No-load speed rpm
1500
330
230
120
63
34
23
16
12
Rated speed rpm
1300
270
190
100
52
27
20
14
10
Rated torque kg.cm
0.19
0.8
1.1
1.8
3.6
6
8
11
15
Max.momentary tolerance torque kg.cm
1.0
4.1
5.8
9.5
19
30
30
30
30
GMP28-385SP-2454-xxx
Reduction ratio
4
19
27
51
100
189
264
369
516
Length mm
28.5
36
36
43
43
50
50
50
50
No-load speed rpm
1250
270
190
100
50
29
20
15
10
Rated speed rpm
1000
210
150
78
40
21
15
11
8
Rated torque kg.cm
0.19
0.8
1.1
1.8
3.6
6
8
11
15
Max.momentary tolerance torque kg.cm
0.8
3.2
4.5
7.3
14
25
30
30
30

Product Application

Automatic door operators, automatic energy saving bath,electrical controlled valve,oxygen machine,optical equipment, Automat cordless power tool,lighting,etc.
